John Deere AR Unstyled Tests



John Deere AR Unstyled tractor photo
1935 - 1953
Model year
Standard-tread tractor
Nebraska Tractor Test 378

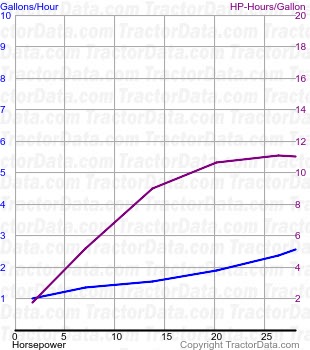

AR Unstyled fuel use from test 378
Nebraska Tractor Test 378
5.3L all-fuel 4-speed 2WD
October 27 - November 3, 1941
Link: Nebraska Tractor Test 378 file
Belt power (max)30.33 hp
22.6 kW
Belt fuel use (max)3.1 gal/hour
11.7 l/hour
Drawbar performance
Max power26.52 hp
19.8 kW
Gear 3 used for power test.
Max pull4,248 lbs
1926 kg
Gear 1 used for pull test.
