| | 1952 - 1955 |
| Standard-tread tractor |
|
| Engine Detail |
| OM Milano COD/40 |
| diesel |
| 4-cylinder |
| liquid-cooled inline |
| Displacement | 230 ci
3.8 L
|
| Bore/Stroke | 3.937x4.724 inches
100 x 120 mm
|
| Fuel system | direct injection
|
| Air cleaner | oil bath
|
| Compression | 16:1
|
| Rated RPM | 1500
|
| Firing order | 1-3-4-2
|
| Starter | electric
|
| Starter volts | 12
|
| Coolant capacity | 18 qts
17.0 L
|

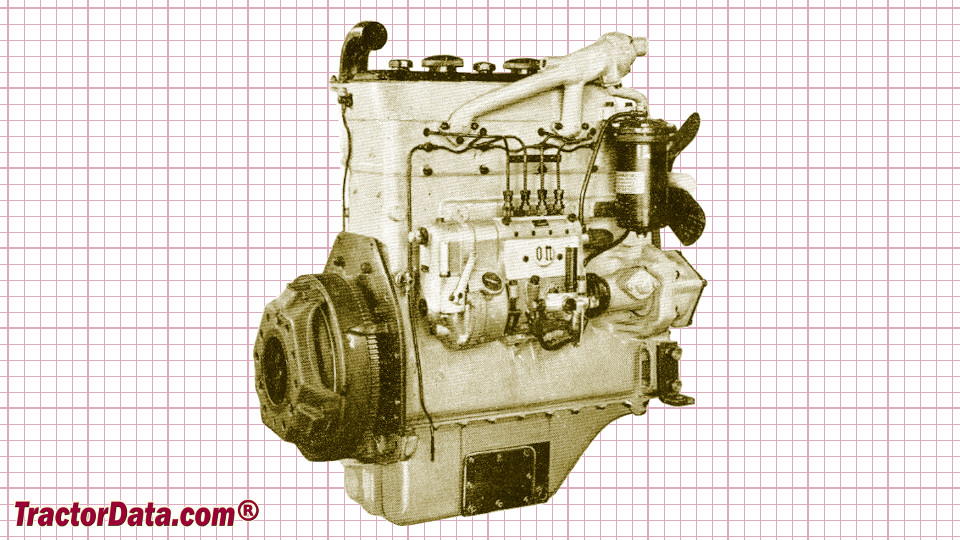

| SOMECA DA 50 Engine |
 |
