John Deere 4200 Transmission


John Deere 4200 tractor photo
1998 - 2001
4000 Compact Series
Compact Utility tractor
Series map:
4100
4200
4300
20.0hp
26.3hp
32.2hp
Transmission options
9-speed partially synchronized
hydrostatic
Transmission
TransmissionSyncShift
Typepartially synchronized
Gears9 forward and 3 reverse
Clutchwet discs, one clutch pack with nine four-inch discs
Oil capacity25.2 qts
23.8 L
Three gears (1-3), plus reverse, in three ranges (A-C). Gears may be shifting on the move, using the clutch. Tractor must be stopped, and clutch used, to shift ranges.
Speeds
With 12.4-16 rear tires.
4200 SyncShift partially synchronized speeds
Transmission
Typehydrostatic
Gearsinfinite forward and reverse (3-range)
Oil capacity27.2 qts
25.7 L
Hydrostatic transmission operated by two foot pedals and left-hand range shift lever. Tractor must be stopped to shift ranges. Push-button cruise control.
Speeds
With 12.4-16 rear tires.

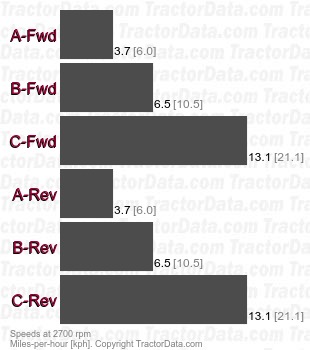

4200  hydrostatic speeds
