John Deere 4200 Engine


John Deere 4200 tractor photo
1998 - 2001
4000 Compact Series
Compact Utility tractor
Series map:
4100
4200
4300
20.0hp
26.3hp
32.2hp
Engine Detail
Yanmar 3TNE78A
diesel
3-cylinder
liquid-cooled
Displacement73.5 ci
1.2 L
Bore/Stroke3.07x3.30 inches
78 x 84 mm
Power (net)24.3 hp
18.1 kW
Power (gross)26.3 hp
19.6 kW
Fuel systemdirect injection
Air cleanerdry
Pre-heatingair heater
Compression18:1
Rated RPM2700
Idle RPM950-2810
Operating RPM950-2700
Starter volts12
Starter power1.6 hp
1.2 kW
Coolant capacity5.6 qts
5.3 L
Engine Oil

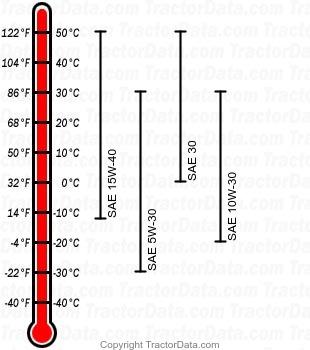

4200 diesel engine oil chart
Oil capacity4 qts
3.8 L
Oil change200 h
