| | 1929 - 1939 |
| C Series | | Row-Crop tractor |
|
| Engine Detail |
| J.I. Case |
| gasoline |
| 4-cylinder |
| liquid-cooled vertical I-head |
| Displacement | 259.5 ci
4.3 L
|
| Bore/Stroke | 3.875x5.50 inches
98 x 140 mm
|
| Compression | 4.88:1
|
| Rated RPM | 1100
|
| Firing order | 1-2-4-3
|
| Coolant capacity | 20 qts
18.9 L
|

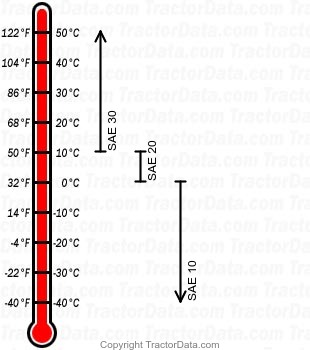

| Engine Oil |
|
