John Deere 4700 Transmission


John Deere 4700 tractor photo
2000 - 2001
4000 Compact Series
Compact Utility tractor
Series map:
4600
4700
43.0hp
48.0hp
Transmission options
12-speed partially synhcronized power shuttle
hydrostatic
24-speed partially synhcronized power shuttle
Transmission
TransmissionPowrReverser
Typepartially synhcronized power shuttle
Gears12 forward and reverse
Clutchwet disc, two clutch packs with three 5-inch discs each
Oil capacity27.2 qts
25.7 L
Four speeds (1-4) in three ranges (A-C) with left-hand reverser on dash. Power shuttle allows direction changes without using the clutch. Speeds are synchronized and may be shifting on the move, using the clutch. Tractor must be stopped to shift ranges.
Speeds
With 13.6-28 rear tries.
4700 PowrReverser partially synhcronized power shuttle speeds
Transmission
Typehydrostatic
Gearsinfinite forward and reverse (three-range)
Oil capacity35.2 qts
33.3 L
Hydrostatic transmission operated with two foot pedals. Push-button cruise control on dash. Tractor must be stopped to shift ranges.
Speeds
With 13.6-28 rear tries.
4700  hydrostatic speeds
Transmission
TransmissionPowrReverser Creeper
Typepartially synhcronized power shuttle
Gears24 forward and reverse
Clutchwet disc, two clutch packs with three 5-inch discs each
Oil capacity27.2 qts
25.7 L
Add creeper range to the PowrReverser, engaged by separate lever. Tractor must be stopped, and clutch used, to shift in or out of creeper range.
Speeds
With 13.6-28 rear tries.

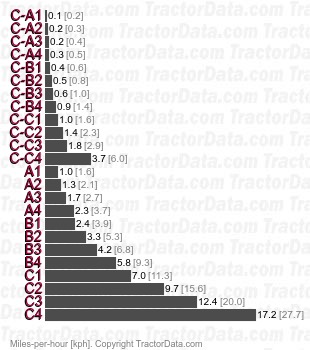

4700 PowrReverser Creeper partially synhcronized power shuttle speeds
