| | 1960 - 1963 |
| 630 Series | | Row-Crop tractor |
|
| Transmission options |
| 8-speed torque converter |
| 12-speed |
| 8-speed |
| 4-speed gear |
| Transmission |
| Transmission | Case Case-o-matic
|
| Type | torque converter
|
| Gears | 8 forward and 2 reverse
|
| Clutch | hydraulic wet disc
|
| Tractors equipped with the Case-o-Matic were sometimes referred to as the 630C. |
| Transmission |
| Transmission | Case Tripl-Range
|
| Gears | 12 forward and 3 reverse
|
| Clutch | dry disc
|
| Transmission |
| Transmission | Case Dual-Range
|
| Gears | 8 forward and reverse
|
| Clutch | dry disc
|
| Transmission |
| Type | gear
|
| Gears | 4 forward and 1 reverse
|
| Clutch | dry disc
|

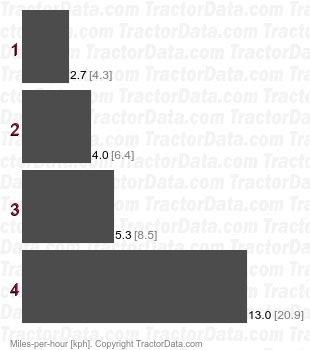

| Speeds |
|
