John Deere 4430 Hi-Crop Engine



John Deere 4430 Hi-Crop tractor photo
1973 - 1977
Generation II Series
High-Clearance tractor
Series map:
4230 Hi-Crop
4430 Hi-Crop
111.1hp*
138.9hp*
*Estimated engine power for comparison only.
Engine Detail
John Deere
turbocharged diesel
6-cylinder
liquid-cooled inline horizontal-shaft
Displacement404 ci
6.6 L
Bore/Stroke4.25x4.75 inches
108 x 121 mm
Fuel systemdirect injection
Air cleanerdry with secondary element
Pre-heatingether injection
Compression15.5:1
Rated RPM2200
Idle RPM800-2200
Operating RPM1500-2200
Firing order1-5-3-6-2-4
Starterelectric
Starter volts12
Coolant capacity30 qts
28.4 L
Intake valve clearance0.018 inches
0.457 mm
Exhaust valve clearance0.028 inches
0.711 mm
Engine Oil

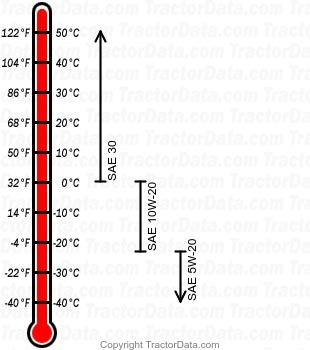

4430 Hi-Crop diesel engine oil chart
Oil capacity17 qts
16.1 L
Oil change100 h
