John Deere 4230 Hi-Crop


John Deere 4230 Hi-Crop tractor photo
1973 - 1977
Generation II Series
High-Clearance tractor
Series map:
4230 Hi-Crop
4430 Hi-Crop
111.1hp*
138.9hp*
*Estimated engine power for comparison only.
Production
ManufacturerJohn Deere
High-Clearance tractor
Built in Waterloo, Iowa, USA
Variants
4230row-crop
4230 Hi-Crophigh clearance
4230 LPlow-profile
John Deere 4230 Hi-Crop Engine
John Deere 6.6L 6-cyl diesel
Fuel tank37 gal
140.0 L
Engine details ...
John Deere 4230 Hi-Crop Transmission
16-speed partial power shift and synchronized
Transmission details ...
John Deere 4230 Hi-Crop Power
PTO (claimed)100 hp
74.6 kW
Mechanical
Two-wheel drive
Power steering
Differential hydraulic wet disc brakes
Two-post fixed ROPS.
Photos
No photos of the John Deere 4230 Hi-Crop are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Typeclosed center
Tractor hitch
Rear TypeII
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540/1000
Dimensions & Tires
Wheelbase103.9 inches
263 cm
Front tire7.50-20
Rear tire18.4-34
Full dimensions and tires ...
4230 Hi-Crop Serial Number Location
John Deere 4230 Hi-Crop serial number location
Serial number plate on the rear of the John Deere 4230, above the PTO shaft.
Electrical
Groundnegative
Charging systemalternator
Batteries2
Battery volts6
References

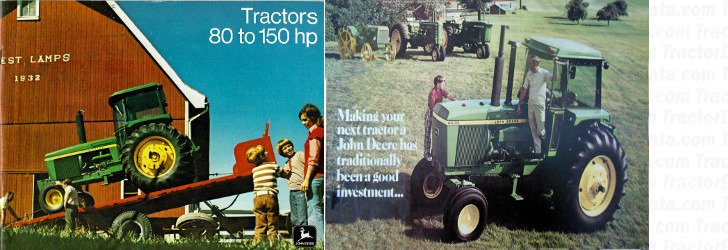

4230 Hi-Crop references literature
Tractors 80 to 150 hp published in 1975, by John Deere
Making you next tractor a John Deere has traditionally been a good investment published in 1975
