Series map:
9741
10741
90.0hp
101.0hp
| Transmission |
| Type | three-speed power shift
|
| Gears | 24 forward and 18 reverse
|
| Clutch | 330.2mm hydraulic cerametallic disc
|
| Three power shift gears (1-3) in four gear sets (1-4) with a two-speed (low/high) range selector. |

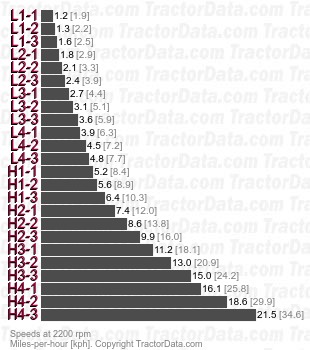

| Speeds |
| With 18.4R38 rear tires. Reverse speeds are 15% faster than forward. |
|
