| | 1993 - 1997 |
| Utility tractor |
|
Series map:
4340
6320
6340
59.0hp
66.0hp
66.0hp
| Transmission options |
| 10-speed synchro |
| 10-speed |
| Transmission |
| Type | synchro
|
| Gears | 10 forward and 2 reverse
|
| Clutch | hydraulic 304.8mm cerametallic disc
|

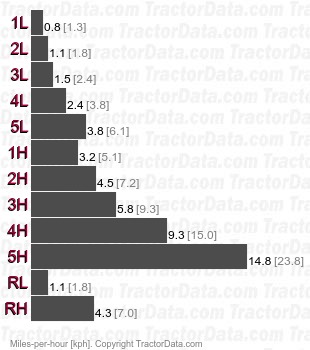

| Speeds |
| With 16.9-28 rear tires. |
|
| Transmission |
| Transmission | mechanical shuttle
|
| Gears | 10 forward and reverse
|

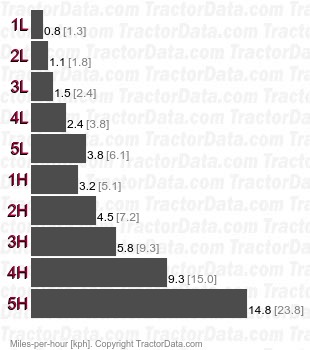

| Speeds |
| With 16.9-28 rear tires. Reverse speeds are 10% faster than forward. |
|
