Zetor 3341
| | 1997 - 2005 |
| Range 1 Super Series | | Utility tractor |
|
Series map:
3321
3341
4321
46.0hp
46.0hp
59.0hp
| Production |
| Manufacturer | Zetor
|
| Utility tractor |
| Built in Brno, Czech Republic |
| Zetor 3341 Power |
| Engine | 46 hp
34.3 kW
|
| PTO (claimed) | 43 hp
32.1 kW
|
| Mechanical |
| Four-wheel drive |
| Power steering |
| Hydraulic wet disc brakes |
| Two-post folding ROPS. Cab optional with air-conditioning. |
| Hydraulics |
| Type | open center
|
| Pressure | 2600 psi
179.3 bar
|
| Valves | 1 to 3
|
| Pump flow | 14 gpm
53.0 lpm
|
| Steering flow | 4 gpm
15.1 lpm
|
| Tractor hitch |
| Rear Type | II/I
|
| Control | position and draft control
|
| Rear lift | 4300 lbs
1950 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 540
|
| Electrical |
| Charging system | alternator
|
| Charging amps | 75
|
| Battery volts | 12
|
| References |
 |
| 3321 - 3341 published by Zetor |
| Super Series Tractors published by Zetor |
| Page information |
 |
| Copyright 2024 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on June 28, 2018 |
©2000-2024 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Engine details ...

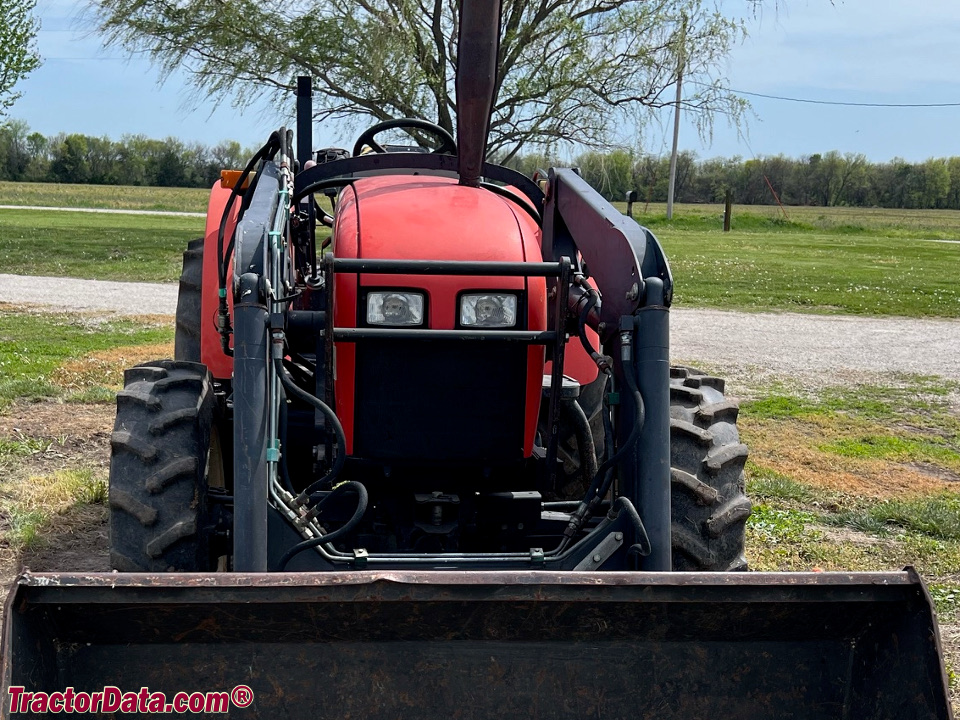

Zetor 3341 photos...
