| | 1993 - 1997 |
| Range 1 Series | | Utility tractor |
|
Series map:
3320
3340
4320
46.0hp
46.0hp
59.0hp
| Engine Detail |
| Zetor Z5201 |
| diesel |
| 3-cylinder |
| liquid-cooled |
| Displacement | 164.5 ci
2.7 L
|
| Bore/Stroke | 4.016x4.331 inches
102 x 110 mm
|
| Power | 46 hp
34.3 kW
|
| Air cleaner | oil bath with pre-cleaner
|
| Compression | 17:1
|
| Rated RPM | 2200
|
| Starter volts | 12
|

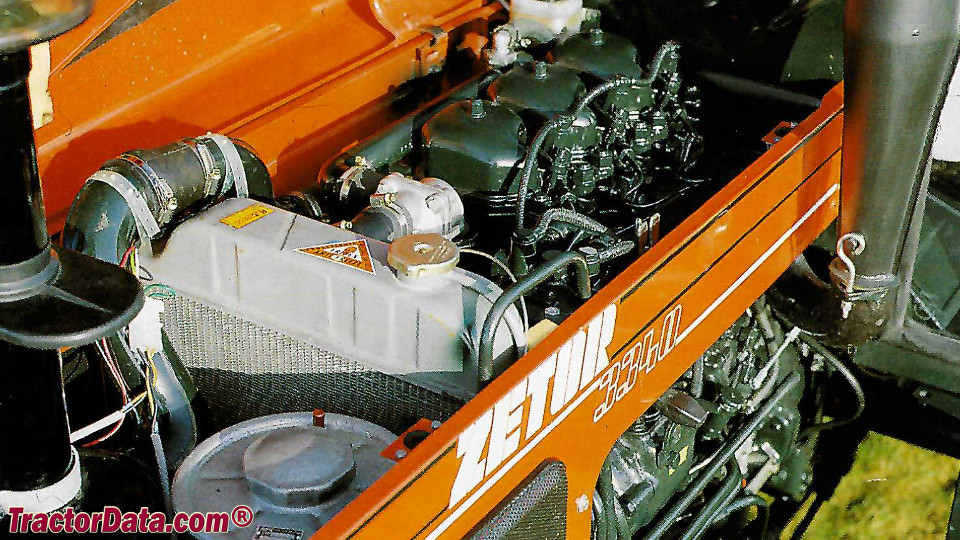

| Zetor 3340 Engine |
 |
