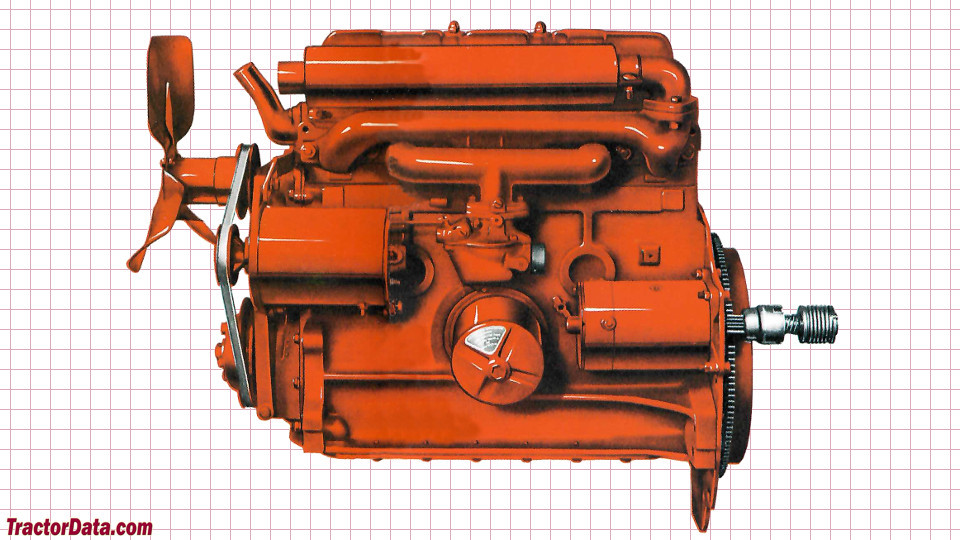

Ford 981 Engine
|
|
| Engine options | |
| Ford 2.8L 4-cyl gasoline | |
| Ford 2.8L 4-cyl LP gas | |
| Ford 2.8L 4-cyl diesel |
| Engine Detail | |
| Ford EAF | |
| gasoline | |
| 4-cylinder 8-valve | |
| liquid-cooled vertical overhead valve | |
| Displacement | 172 ci 2.8 L |
| Bore/Stroke | 3.90x3.60 inches 99 x 91 mm |
| Power | 62.6 hp 46.7 kW |
| Air cleaner | oil bath |
| Compression | 7.5:1 |
| Rated RPM | 2000 |
| Torque | 166 lb-ft 225.1 Nm |
| Torque RPM | 1600 |
| Firing order | 1-2-4-3 |
| Starter volts | 6 |
| Coolant capacity | 15 qts 14.2 L |
| Sparkplug gap | 0.027 inches 0.686 mm |
| Point gap | 0.025 inches 0.635 mm |
| Intake valve clearance | 0.015 inches (hot) 0.381 mm |
| Exhaust valve clearance | 0.015 inches (hot) 0.381 mm |

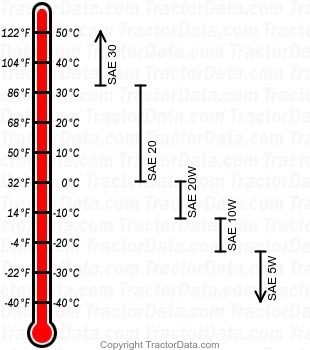

| Engine Oil | |
| |
| Oil capacity | 5 qts 4.7 L |
| Oil change | 100 h |
| Ford 981 Engine | |
 |
| Engine Detail | |
| Ford EAF | |
| LP gas | |
| 4-cylinder 8-valve | |
| liquid-cooled | |
| Displacement | 172 ci 2.8 L |
| Bore/Stroke | 3.90x3.60 inches 99 x 91 mm |
| Air cleaner | oil bath |
| Compression | 8.65:1 |
| Rated RPM | 2200 |
| Firing order | 1-2-4-3 |
| Starter volts | 6 |
| Sparkplug gap | 0.027 inches 0.686 mm |
| Point gap | 0.025 inches 0.635 mm |
| Intake valve clearance | 0.015 inches (hot) 0.381 mm |
| Exhaust valve clearance | 0.015 inches (hot) 0.381 mm |
| Engine Detail | |
| Ford | |
| diesel | |
| 4-cylinder 8-valve | |
| liquid-cooled | |
| Displacement | 172 ci 2.8 L |
| Bore/Stroke | 3.90x3.60 inches 99 x 91 mm |
| Power | 56.3 hp 42.0 kW |
| Air cleaner | oil bath |
| Compression | 16.8:1 |
| Rated RPM | 2200 |
| Torque | 140.4 lb-ft 190.4 Nm |
| Torque RPM | 1400 |
| Firing order | 1-2-4-3 |
| Starter volts | 12 |
| Engine Oil | |
| |
| Oil capacity | 5 qts 4.7 L |
