Ford 961
| | 1958 - 1962 |
| 901 Powermaster Series | | Row-Crop tractor |
|
| Production |
| Manufacturer | Ford
|
| Row-Crop tractor |
| Built in Highland Park, Michigan, USA |
| The Ford 961 Powermaster was similar to the 951, but had a live PTO. |
| Variants |
| 861 | utility chassis
|
| 941 | four-speed
|
| 951 | five-speed
|
| 961 | five-speed, live PTO
|
| 971 | Select-O-Speed
|
| 981 | Select-O-Speed, dual-speed PTO
|
| Ford 961 Power |
| Engine (gross) | 62.6 hp
46.7 kW
|
| Engine | 56.3 hp
42.0 kW
|
| Belt (claimed) | 40 hp
29.8 kW
|
| Plows | 3 *14-inch
|
| Mechanical |
| Two-wheel drive |
| Steering | power assist
|
| Differential mechanical expanding shoe brakes |
| Open operator station. |
| Capacity |
| Fuel | 17 gal
64.3 L
|
| Hydraulic system | 2 gal
7.6 L
|
| Hydraulics |
| Type | open center
|
| Capacity | 2 gal
7.6 L
|
| Pressure | 2000 psi
137.9 bar
|
| Total flow | 4 gpm
15.1 lpm
|
| Tractor hitch |
| Rear Type | I
|
| Rear lift | 1,250 lbs
567 kg
|
| Power Take-off (PTO) |
| Rear PTO | live
|
| Rear PTO Type | 540
|
| 961 Serial Number Location |
 |
| Left side of tractor, on top of transmission case behind the starter. |
| Electrical |
| Charging system | generator
|
| Charging amps | 20
|
| Battery volts | 6 (gas/lp)
|
| | 12 (diesel)
|
| Battery AH | 80 (6V)
|
| | 135 (12V)
|
| References |
 |
| 1955-1960 Tractor Shop Manual (SE-8175) published in 1961 |
| Power Up with Ford published in 1957 |
| Diesel Tractors published in 1959, by Ford |
| New Diesel Tractors published in 1958, by Ford |
| Ford Powermaster Tractors published in 1958 |
| Ford Powermaster Tractors published in 1959 |
©2000-2024 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Engine details ...
Transmission details ...

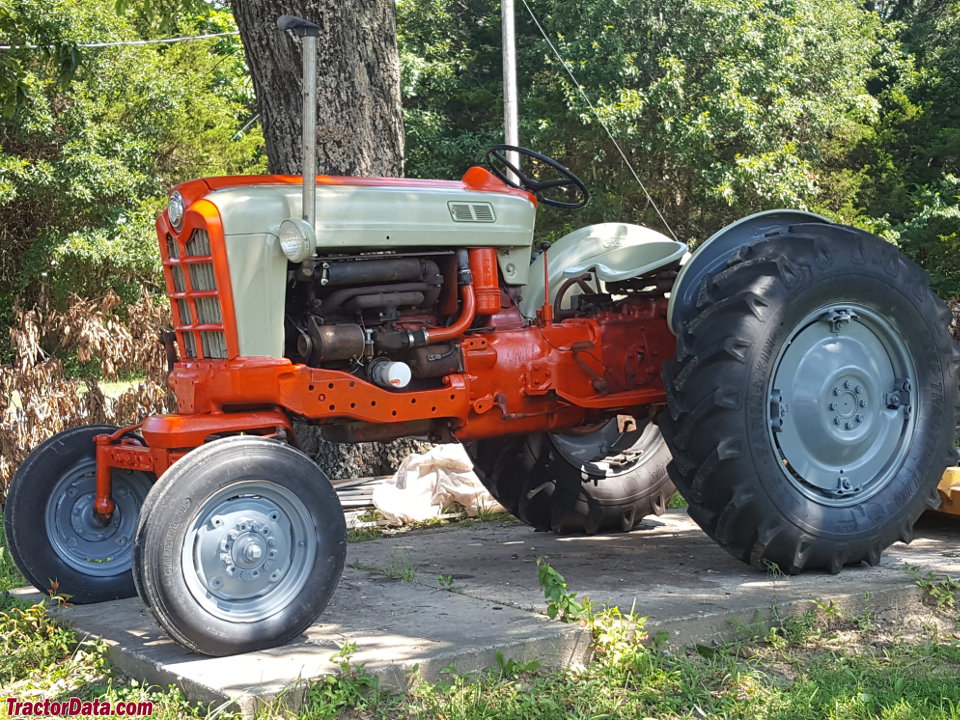

Ford 961 photos...
