| | 1955 - 1957 |
| 800 Series | | Utility tractor |
|
Series map:
820
44.4hp*
*Estimated engine power for comparison only.
| Engine options |
| Ford 2.8L 4-cyl gasoline |
| Ford 2.8L 4-cyl LP gas |
| Engine Detail |
| Ford EAF |
| gasoline |
| 4-cylinder 8-valve |
| liquid-cooled inline |
| Displacement | 172 ci
2.8 L
|
| Bore/Stroke | 3.90x3.60 inches
99 x 91 mm
|
| Air cleaner | oil bath
|
| Compression | 6.75:1
|
| Rated RPM | 2200
|
| Firing order | 1-2-4-3
|
| Starter volts | 6
|
| Coolant capacity | 15 qts
14.2 L
|

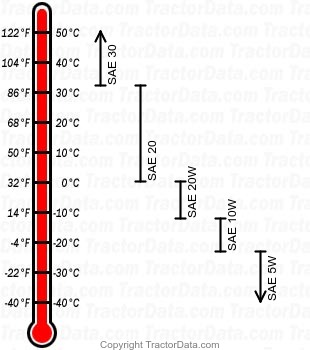

| Engine Oil |
|
| Oil capacity | 5 qts
4.7 L
|
| Engine Detail |
| Ford EAF |
| LP gas |
| 4-cylinder 8-valve |
| liquid-cooled inline |
| Displacement | 172 ci
2.8 L
|
| Bore/Stroke | 3.90x3.60 inches
99 x 91 mm
|
| Air cleaner | oil bath
|
| Compression | 8.0:1
|
| Rated RPM | 2200
|
| Firing order | 1-2-4-3
|
| Starter volts | 6
|
| Engine Oil |
|
| Oil capacity | 5 qts
4.7 L
|
