CaseIH STX450QT Quadtrac Engine


CaseIH STX450QT Quadtrac tractor photo
2002 - 2005
Steiger STX Series
Articulated Crawler tractor
Series map:
STX425QT
STX450QT
STX500QT
425.0hp
450.0hp
500.0hp
Engine Detail
Cummins QSX15
turbocharged aftercooled diesel
6-cylinder
liquid-cooled
Displacement912 ci
14.9 L
Bore/Stroke5.39x6.65 inches
137 x 169 mm
Power450 hp
335.6 kW
Air cleanerdual paper elements
Compression16.5:1
Rated RPM2000
Torque1669 lb-ft
2263.2 Nm
Torque RPM1400
Starter volts12

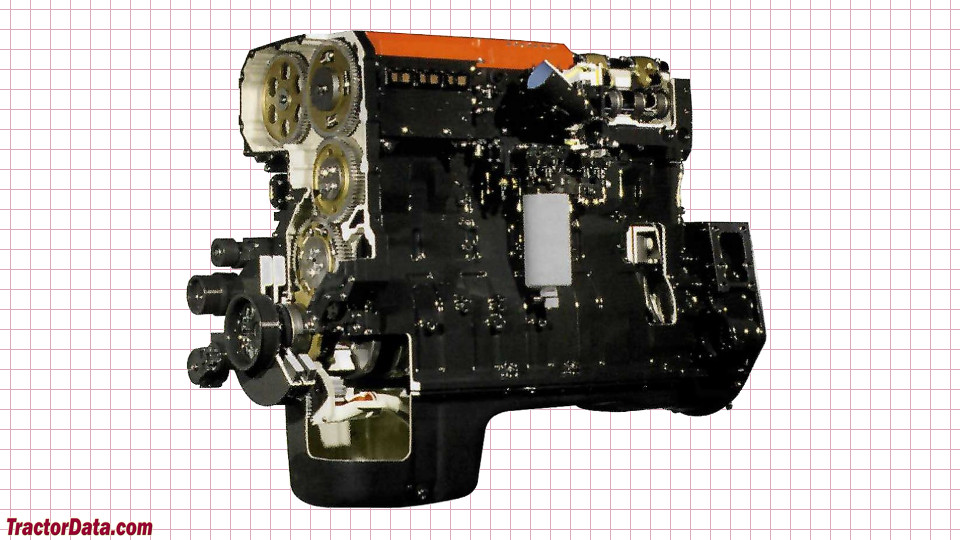

CaseIH STX450QT Engine
CaseIH STX450QT engine image
