| | 2002 - 2005 |
| Steiger STX Series | | Articulated Crawler tractor |
|
Series map:
STX375QT
STX425QT
375.0hp
425.0hp
| Engine Detail |
| Cummins QSX15 |
| turbocharged aftercooled diesel |
| 6-cylinder |
| liquid-cooled |
| Displacement | 915 ci
15.0 L
|
| Bore/Stroke | 5.39x6.65 inches
137 x 169 mm
|
| Power | 375 hp
279.6 kW
|
| Air cleaner | dual paper elements
|
| Rated RPM | 2000
|
| Torque | 1380 lb-ft
1871.3 Nm
|
| Torque RPM | 1400
|
| Starter volts | 12
|

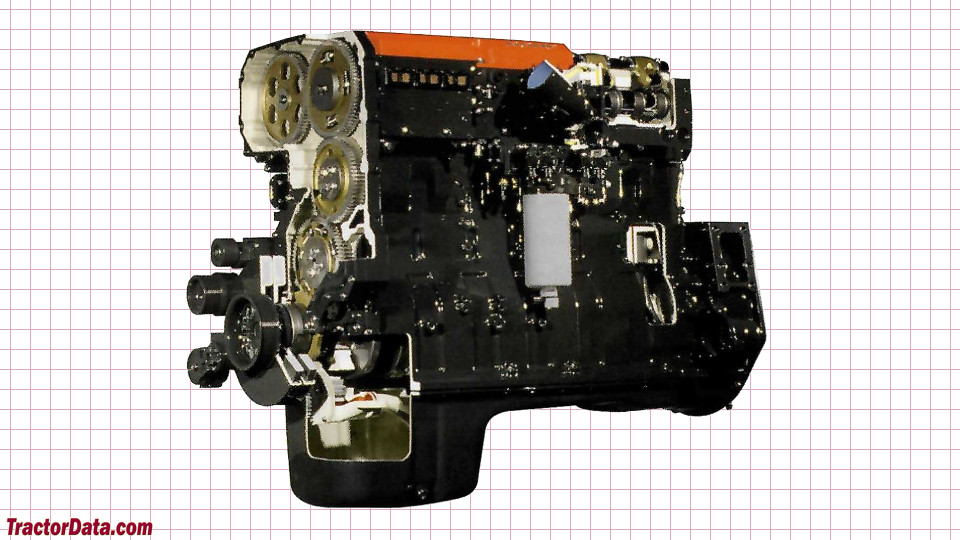

| CaseIH STX375QT Engine |
 |
