Tractors > CaseIH > STX450

CaseIH STX450 Engine



CaseIH STX450 tractor photo
2002 - 2005
Steiger STX Series
Four-wheel Drive (4WD) tractor
Series map:
STX425
STX450
STX500
425.0hp
450.0hp
500.0hp
Engine Detail
Cummins QSX 15
turbocharged aftercooled diesel
6-cylinder
liquid-cooled inline
Displacement912 ci
14.9 L
Bore/Stroke5.39x6.65 inches
137 x 169 mm
Power450 hp
335.6 kW
Air cleanerdual paper elements
Compression16.5:1
Rated RPM2000
Torque1669 lb-ft
2263.2 Nm
Torque RPM1400
Starter volts12

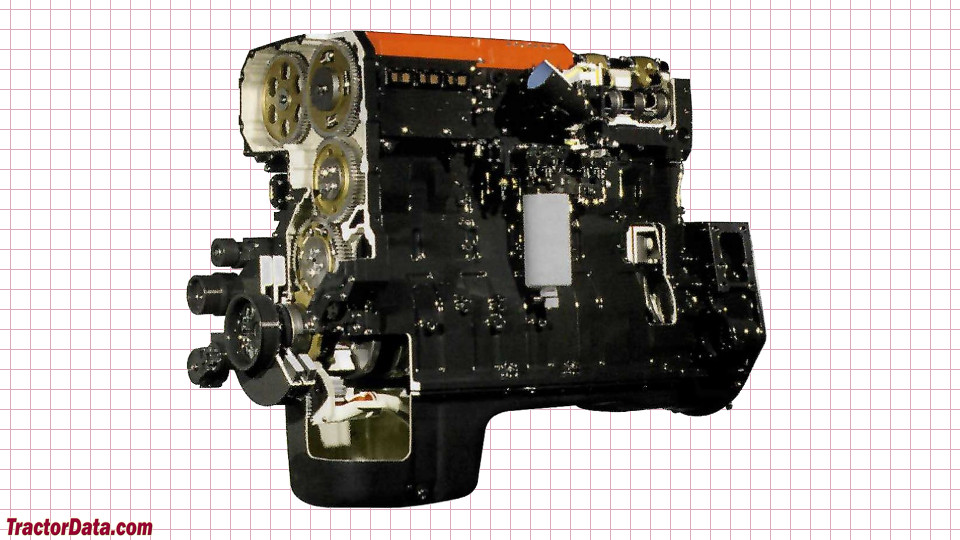

CaseIH STX450 Engine
CaseIH STX450 engine image
