Tractors > CaseIH > STX325

CaseIH STX325 Engine



CaseIH STX325 tractor photo
2000 - 2005
Steiger STX Series
Four-wheel Drive (4WD) tractor
Series map:
STX275
STX325
STX375
275.0hp
325.0hp
375.0hp
Engine Detail
CDC 6TAA-9004
turbocharged aftercooled diesel
6-cylinder
liquid-cooled inline
Displacement540 ci
8.9 L
Bore/Stroke4.488x5.689 inches
114 x 145 mm
Power325 hp
242.4 kW
Air cleanerdual paper elements
Compression16.5:1
Rated RPM2000
Torque1150 lb-ft
1559.4 Nm
Torque RPM1400
Starter volts12
Oil capacity29.2 qts
27.6 L

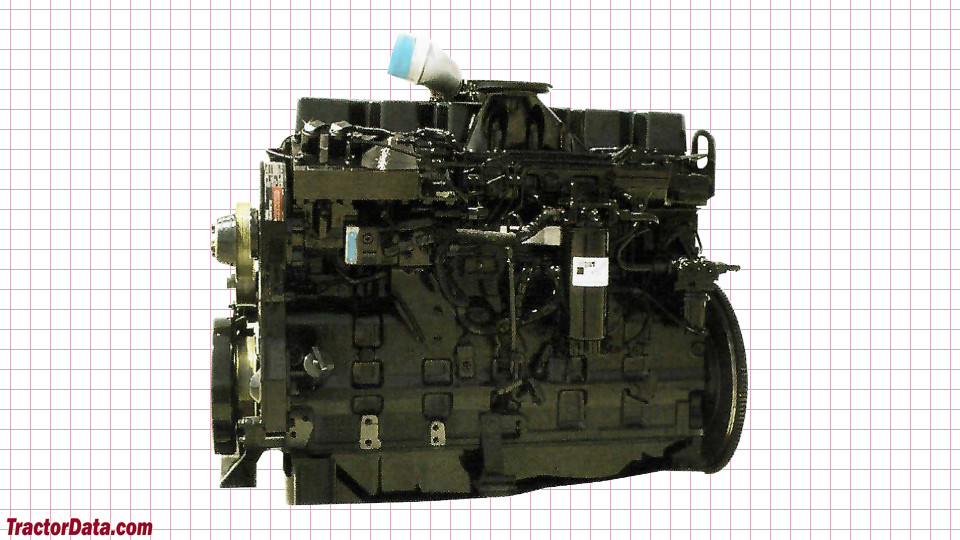

CaseIH STX325 Engine
CaseIH STX325 engine image
