CaseIH STX275 Transmission


CaseIH STX275 tractor photo
2000 - 2005
Steiger STX Series
Four-wheel Drive (4WD) tractor
Series map:
STX275
STX325
275.0hp
325.0hp
Transmission options
16-speed full power shift
24-speed fully synchronized
Transmission
Typefull power shift
Gears16 forward and 2 reverse
Clutchelectro-hydraulic wet disc
Speeds

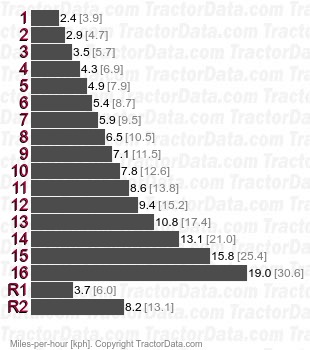

STX275  full power shift speeds
Transmission
TransmissionSynchroshift
Typefully synchronized
Gears24 forward and 6 reverse
