Tractors > CaseIH > STX275

CaseIH STX275 Tests



CaseIH STX275 tractor photo
2000 - 2005
Steiger STX Series
Four-wheel Drive (4WD) tractor
Series map:
STX275
STX325
275.0hp
325.0hp
Nebraska Tractor Test 1796

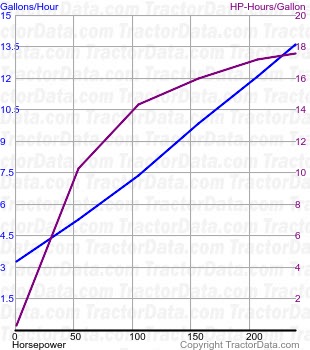

STX275 fuel use from test 1796
Nebraska Tractor Test 1796
Diesel 16-speed 4WD
October 3 - 12, 2001
Link: Nebraska Tractor Test 1796 file
PTO performance
Max power274.11 hp
204.4 kW
Fuel use15.0 gal/hour
56.8 l/hour
Power at rated engine speed238.92 hp
178.2 kW
Fuel use13.6 gal/hour
51.5 l/hour
Drawbar performance
Max power211.57 hp
157.8 kW
Fuel use13.7 gal/hour
51.9 l/hour
Gear 4 used for power test.
