CaseIH MX285 Magnum Transmission


CaseIH MX285 Magnum tractor photo
2003 - 2006
Magnum Series
Row-Crop tractor
Series map:
MX255
MX285
262.0hp
287.0hp
Transmission
Typefull power shift
Gears18 forward and 4 reverse
Clutchelectro-hydraulic wet discs
Speeds

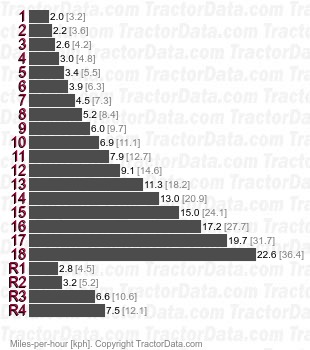

MX285 Magnum  full power shift speeds
Shift Pattern
CaseIH MX285 transmission controls
