Tractors > CaseIH > MX285 Magnum

CaseIH MX285 Magnum Tests



CaseIH MX285 Magnum tractor photo
2003 - 2006
Magnum Series
Row-Crop tractor
Series map:
MX255
MX285
262.0hp
287.0hp
OCED Tractor Test 1828

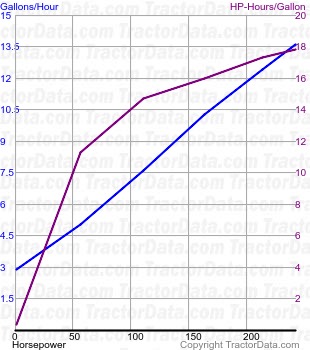

MX285 Magnum fuel use from test 416
OCED Tractor Test 1828
Diesel 18-speed 4WD
September 9 - October 24, 2003
Link: OCED Tractor Test 1828 file
PTO performance
Max power276.12 hp
205.9 kW
Fuel use14.7 gal/hour
55.6 l/hour
Power at rated engine speed242.24 hp
180.6 kW
Fuel use13.6 gal/hour
51.5 l/hour
Drawbar performance
Max power203.74 hp
151.9 kW
Fuel use13.6 gal/hour
51.5 l/hour
Gear 7 used for power test.
Max pull20,820 lbs
9443 kg
Gear 5 used for pull test.
