Tractors > CaseIH > MX285 Magnum

CaseIH MX285 Magnum Engine



CaseIH MX285 Magnum tractor photo
2003 - 2006
Magnum Series
Row-Crop tractor
Series map:
MX255
MX285
262.0hp
287.0hp
Engine Detail
CDC
turbocharged diesel
6-cylinder 24-valve
liquid-cooled inline
Displacement504.5 ci
8.3 L
Bore/Stroke4.488x5.315 inches
114 x 135 mm
EmissionsTier II
Power287 hp
214.0 kW
Air cleanerdual paper elements
Compression17.0:1
Rated RPM2000
Torque1853 lb-ft
2512.7 Nm
Torque RPM1400
Starter volts12
Oil capacity22 qts
20.8 L
Coolant capacity24 qts
22.7 L

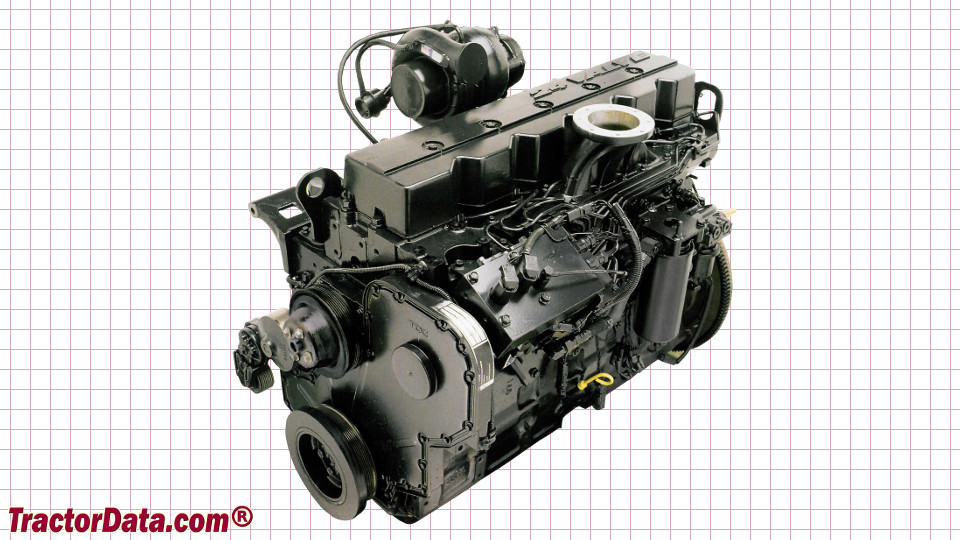

CaseIH MX285 Engine
CaseIH MX285 engine image
