Tractors > CaseIH > MX255 Magnum

CaseIH MX255 Magnum Transmission



CaseIH MX255 Magnum tractor photo
2003 - 2006
Magnum Series
Row-Crop tractor
Series map:
MX230
MX255
MX285
234.0hp
262.0hp
287.0hp
Transmission
Typefull power shift
Gears18 forward and 4 reverse
Clutchelectro-hydraulic wet discs

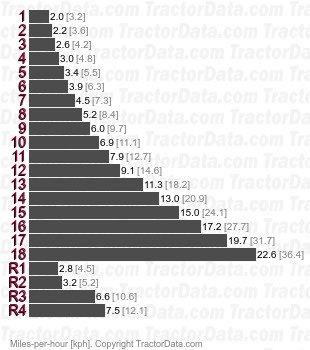

Speeds
MX255 Magnum full power shift speeds

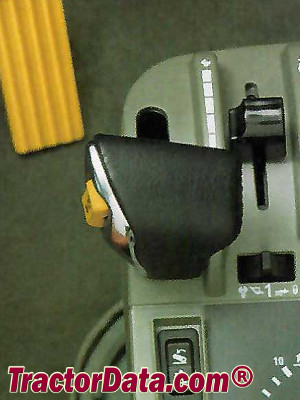

Shift Pattern
CaseIH MX255 transmission controls
