Tractors > CaseIH > MX255 Magnum

CaseIH MX255 Magnum Tests



CaseIH MX255 Magnum tractor photo
2003 - 2006
Magnum Series
Row-Crop tractor
Series map:
MX230
MX255
MX285
234.0hp
262.0hp
287.0hp
OCED Tractor Test 1827

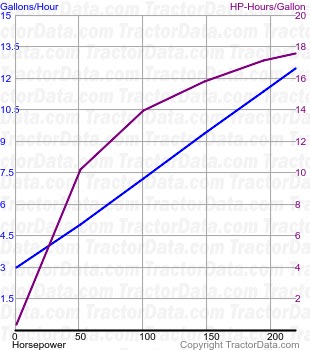

MX255 Magnum fuel use from test 415
OCED Tractor Test 1827
Diesel 18-speed 4WD
September 15 - October 24, 2003
Link: OCED Tractor Test 1827 file
PTO performance
Max power248.20 hp
185.1 kW
Fuel use13.1 gal/hour
49.6 l/hour
Power at rated engine speed219.19 hp
163.4 kW
Fuel use12.5 gal/hour
47.3 l/hour
Drawbar performance
Max power187.68 hp
140.0 kW
Fuel use12.8 gal/hour
48.4 l/hour
Gear 7 used for power test.
Max pull21,234 lbs
9631 kg
Gear 5 used for pull test.
