CaseIH MX230 Magnum
| | 2003 - 2006 |
| Magnum Series | | Row-Crop tractor |
|
| Production |
| Manufacturer | CaseIH (a part of CNH)
|
| Row-Crop tractor |
| Built in Racine, Wisconsin, USA |
| Variants |
| TG230 | similar New Holland model
|
| CaseIH MX230 Power |
| Engine | 234 hp
174.5 kW
|
| PTO (claimed) | 190 hp
141.7 kW
|
| Drawbar (tested) | 165.17 hp
123.2 kW
|
| PTO (tested) | 216.55 hp
161.5 kW
|
 Performance test details ... |
| Mechanical |
| Two- or four-wheel drive |
| Steering | hydrostatic power
|
| Differential hydraulic wet disc brakes |
| Surveyor Cab standard with air-conditioning. Optional automatic climate control. |
| Capacity |
| Fuel | 130 gal
492.1 L
|
| | 160 gal (optional)
605.6 L
|
| Hydraulic system | 45.5 gal
172.2 L
|
| Hydraulics |
| Type | closed center pressure flow compensated with parallel priority (PFC)
|
| Capacity | 45.5 gal
172.2 L
|
| Pressure | 2950 psi
203.4 bar
|
| Valves | 3 to 5
|
| Total flow | 38.6 gpm
146.1 lpm
|
| | 53.1 gpm (optional)
201.0 lpm
|
| Tractor hitch |
| Rear Type | III/IIIN
|
| Control | electronic draft control
|
| Rear lift | 13,960 lbs
6332 kg
|
| | 15,970 lbs (optional)
7243 kg
|
| Front Hitch | optional
|
| Front lift | 7,170 lbs
3252 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 1000 (1.75)
|
| | 540/1000 (1.375 optional)
|
| MX230 Serial Number Location |
 |

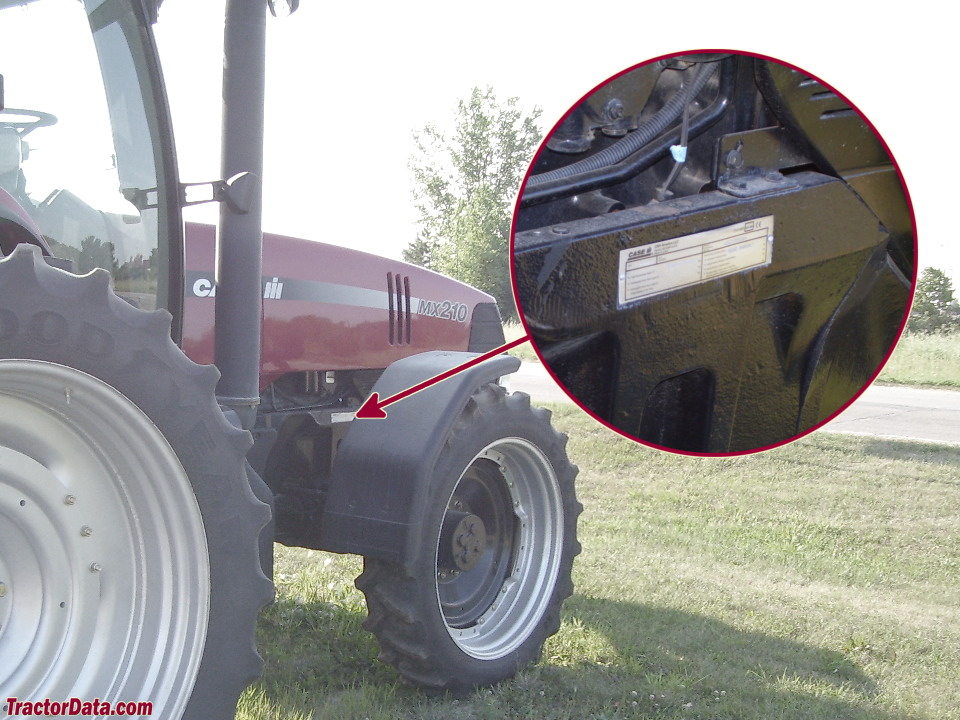

| Serial number plate on the right side of the tractor frame, above the front axle. |
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 135
|
| Charging volts | 12
|
| Batteries | 2
|
| Battery CCA | 1000
|
| Battery volts | 12
|
| References |
 |
| MX Series Magnum Tractors published in 2003, by CaseIH |
