CaseIH MX230 Magnum Transmission


CaseIH MX230 Magnum tractor photo
2003 - 2006
Magnum Series
Row-Crop tractor
Series map:
MX210
MX230
MX255
200.0hp
234.0hp
262.0hp
Transmission
Typefull power shift
Gears18 forward and 4 reverse
Clutchelectro-hydraulic wet discs

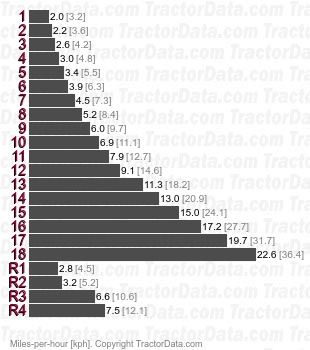

Speeds
MX230 Magnum  full power shift speeds

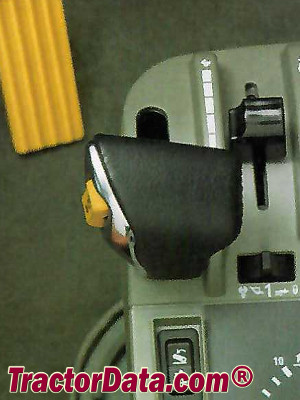

Shift Pattern
CaseIH MX230 transmission controls
