Tractors > CaseIH > MX230 Magnum

CaseIH MX230 Magnum Engine



CaseIH MX230 Magnum tractor photo
2003 - 2006
Magnum Series
Row-Crop tractor
Series map:
MX210
MX230
MX255
200.0hp
234.0hp
262.0hp
Engine Detail
CDC
turbocharged intercooled diesel
6-cylinder 12-valve
liquid-cooled inline
Displacement504.5 ci
8.3 L
Bore/Stroke4.488x5.315 inches
114 x 135 mm
EmissionsTier II
Power234 hp
174.5 kW
Air cleanerdual paper elements
Compression17.0:1
Rated RPM2000
Torque1445 lb-ft
1959.4 Nm
Torque RPM1400
Starter volts12
Oil capacity22 qts
20.8 L
Coolant capacity24 qts
22.7 L

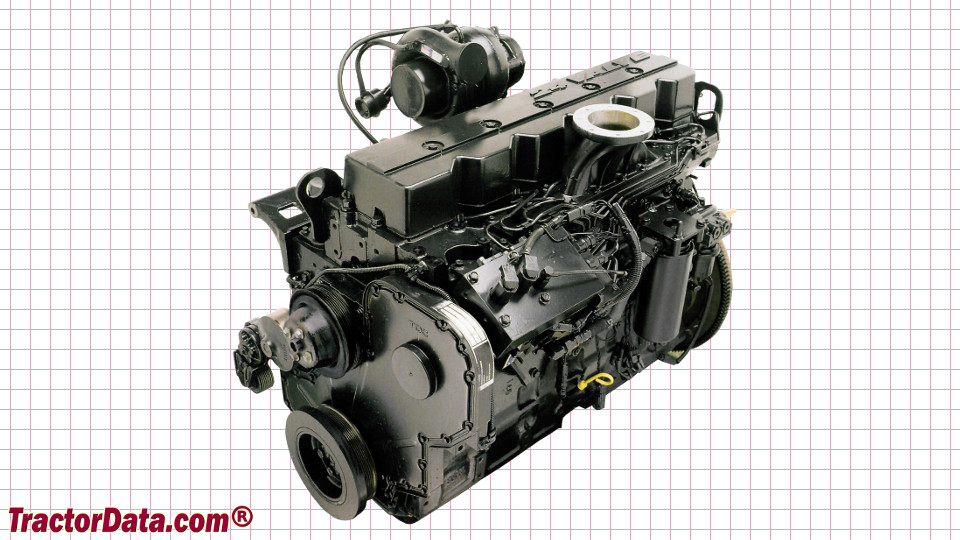

CaseIH MX230 Engine
CaseIH MX230 engine image
