Tractors > CaseIH > MX210 Magnum

CaseIH MX210 Magnum Tests



CaseIH MX210 Magnum tractor photo
2003 - 2006
Magnum Series
Row-Crop tractor
Series map:
MX210
MX230
200.0hp
234.0hp
OCED Tractor Test 1825

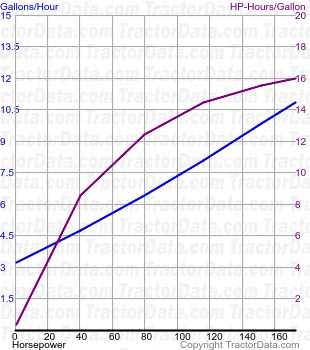

MX210 Magnum fuel use from test 413
OCED Tractor Test 1825
Diesel 18-speed 4WD
September 26 - October 27, 2003
Link: OCED Tractor Test 1825 file
PTO performance
Max power198.11 hp
147.7 kW
Fuel use11.0 gal/hour
41.6 l/hour
Power at rated engine speed172.54 hp
128.7 kW
Fuel use10.8 gal/hour
40.9 l/hour
Drawbar performance
Max power145.12 hp
108.2 kW
Fuel use10.8 gal/hour
40.9 l/hour
Gear 7 used for power test.
Max pull19,579 lbs
8881 kg
Gear 4 used for pull test.
