| | 2004 - 2006 |
| MXU Maxxum Series | | Utility tractor |
|
Series map:
MXU100
MXU110
100.0hp
115.0hp
| Engine Detail |
| CNH |
| turbocharged intercooled diesel |
| 4-cylinder |
| liquid-cooled |
| Displacement | 273.7 ci
4.5 L
|
| Bore/Stroke | 4.094x5.196 inches
104 x 132 mm
|
| Power (gross) | 100 hp
74.6 kW
|
| Fuel system | Bosch mechanical direct injection with 6-hole injectors
|
| Air cleaner | dual paper elements
|
| Pre-heating | grid heater
|
| Compression | 17.0:1
|
| Rated RPM | 2200
|
| Starter volts | 12
|

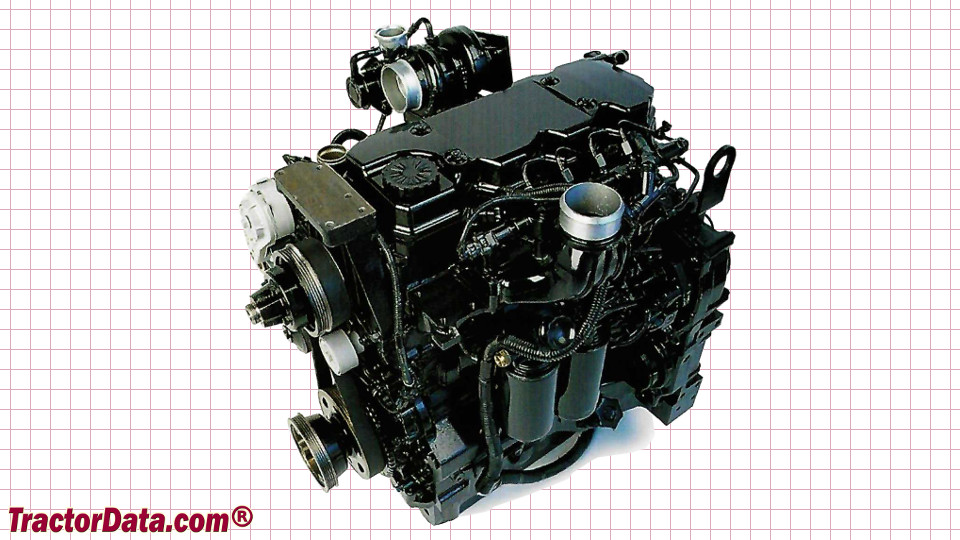

| CaseIH MXU100 Engine |
 |
