Tractors > CaseIH > MXM190 Maxxum

CaseIH MXM190 Maxxum Tests



CaseIH MXM190 Maxxum tractor photo
2002 - 2007
Maxxum Series
Row-Crop tractor
Series map:
MXM175
MXM190
174.0hp
190.0hp
OCED Tractor Test 2145

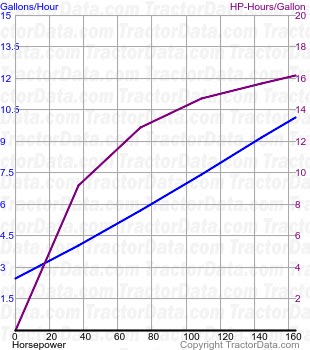

MXM190 Maxxum fuel use from test 439
OCED Tractor Test 2145
Diesel 19-speed 4WD
November 1, 2003 - April 1, 2004
Link: OCED Tractor Test 2145 file
PTO performance
Max power172.1 hp
128.3 kW
Fuel use9.7 gal/hour
36.7 l/hour
Power at rated engine speed163.6 hp
122.0 kW
Fuel use10.1 gal/hour
38.2 l/hour
Power at rated PTO speed167.4 hp
124.8 kW
Fuel use10.2 gal/hour
38.6 l/hour
Drawbar performance
Max power137.6 hp
102.6 kW
Fuel use10.4 gal/hour
39.4 l/hour
Gear 9 used for power test.
Max pull17,465 lbs
7922 kg
Gear 2 used for pull test.
