CaseIH JX65 Maxxima Tests


CaseIH JX65 Maxxima tractor photo
2002 - 2006
Model year
JX Series
Utility tractor
Turk Tractor built
Series map:
JX55
JX65
JX75
58.0hp
65.0hp
75.0hp
OCED Tractor Test 2013

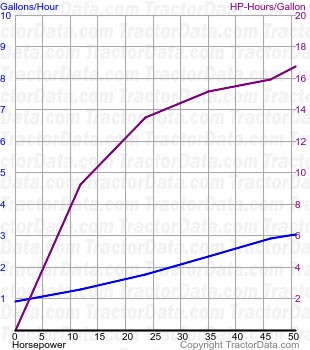

JX65 Maxxima fuel use from test 403
OCED Tractor Test 2013
179 diesel 12-speed 4WD
March 2002 - May 2002,
Link: OCED Tractor Test 2013 file
PTO performance
Power at rated engine speed50.7 hp
37.8 kW
Fuel use3.0 gal/hour
11.4 l/hour
Power at rated PTO speed47.7 hp
35.6 kW
Fuel use2.7 gal/hour
10.2 l/hour
Drawbar performance
Max power41.5 hp
30.9 kW
Fuel use2.9 gal/hour
11.0 l/hour
Gear 10 used for power test.
Max pull3680 lbs
1669 kg
