Tractors > CaseIH > JX55 Maxxima

CaseIH JX55 Maxxima Tests



CaseIH JX55 Maxxima tractor photo
2002 - 2006
Model year
JX Series
Utility tractor
Turk Tractor built
Series map:
JX55
JX65
58.0hp
65.0hp
OCED Tractor Test 2009

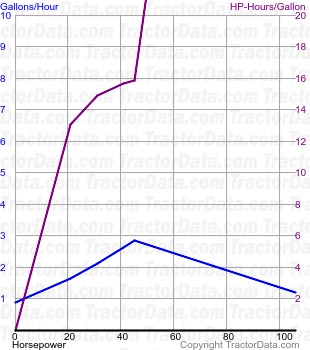

JX55 Maxxima fuel use from test 402
OCED Tractor Test 2009
165 diesel 12-speed 4WD
February 2002 - May 2002,
Link: OCED Tractor Test 2009 file
PTO performance
Power at rated engine speed45.1 hp
33.6 kW
Fuel use2.9 gal/hour
11.0 l/hour
Power at rated PTO speed42.4 hp
31.6 kW
Fuel use2.6 gal/hour
9.8 l/hour
Drawbar performance
Max power37.8 hp
28.2 kW
Fuel use2.9 gal/hour
11.0 l/hour
Gear 10 used for power test.
