CaseIH Farmall DX48

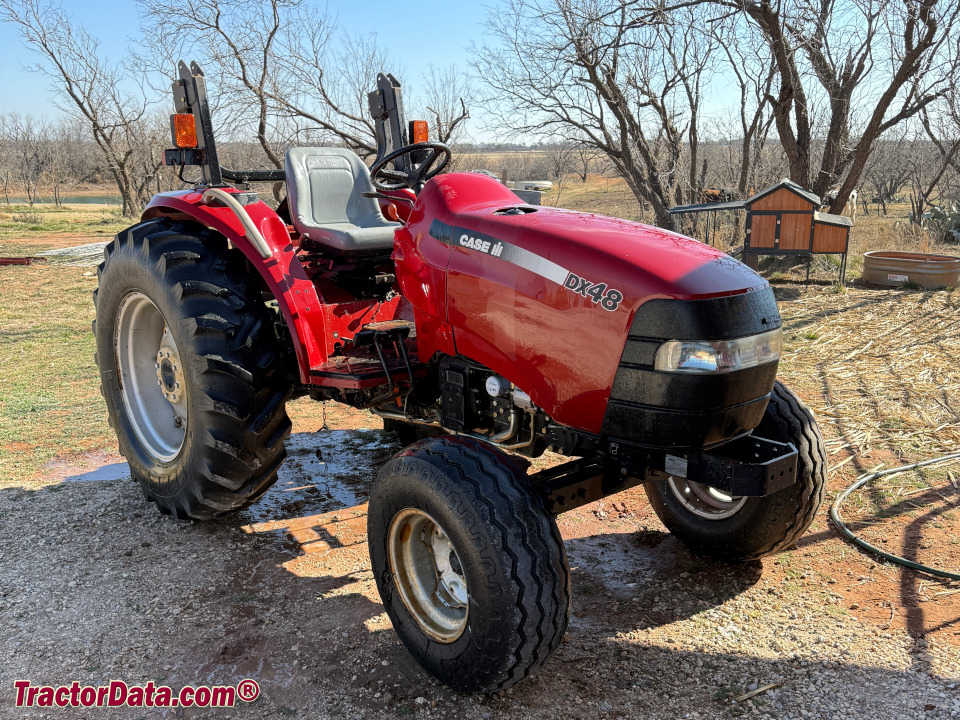

CaseIH Farmall DX48 tractor photo
2004 - 2008
DX Series
Compact Utility tractor
Series map:
Farmall DX48
Farmall DX55
48.0hp
55.0hp
Production
ManufacturerCaseIH
Compact Utility tractor
Variants
TC48DAsimilar New Holland model
CaseIH Farmall DX48 Engine
Shibaura 2.2L 4-cyl diesel
Fuel tank13.5 gal
51.1 L
Engine details ...
CaseIH Farmall DX48 Power
Engine48 hp
35.8 kW
PTO (claimed)40 hp
29.8 kW
PTO (tested)40.98 hp
30.6 kW
Performance test details ...
Mechanical
Drive4x2 2WD
 4x4 MFWD 4WD (optional)
Steeringhydrostatic power
Independent mechanical wet disc brakes
Two-post foldable ROPS.
Photos
No photos of the CaseIH Farmall DX48 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Total flow17.55 gpm
66.4 lpm
Tractor hitch
Rear TypeI/II
Rear lift (at 24"/610mm)3,465 lbs
1571 kg
Power Take-off (PTO)
Rear PTO Type540
Dimensions & Tires
Wheelbase74.8 inches
189 cm
Weight4,315 lbs
1957 kg
Full dimensions and tires ...
References
Farmall DX48 references literature
DX Series Farmall Tractors published in 2004, by CaseIH
DX Series Farmall Tractors published in 2003, by CaseIH
DX Series Farmall Tractors and Integrated Implements published in 2004, by CaseIH
