John Deere 2120

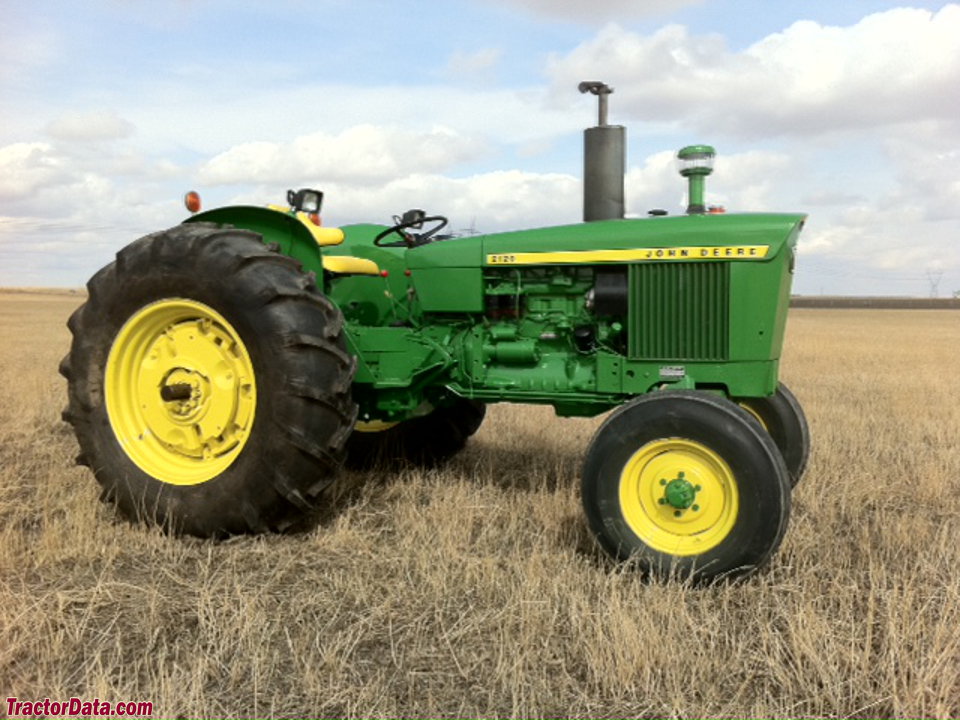

John Deere 2120 tractor photo
1969 - 1972
Series map:
2020
2120
47.7kw
50.7kw
Production
ManufacturerJohn Deere
FactoriesMannheim, Baden-Württemberg, Germany
 Mexico
John Deere 2120 Engine
John Deere 3.6L 4-cyl diesel
Fuel tank19.5 gal
73.8 L
Engine details ...
John Deere 2120 Transmissions
8-speed gear
16-speed two-speed power shift
Transmission details ...
John Deere 2120 Power
Engine68 hp
50.7 kW
PTO (claimed)60 hp
44.7 kW
Mechanical
Two-wheel drive
Final drivesplanetary
Differential lockmechanical rear
Open operator station. Cab optional.
Hydraulics
Typeclosed center
Pump flow12.4 gpm
46.9 lpm
Tractor hitch
Rear TypeII
Rear lift4498 lbs
2040 kg
Power Take-off (PTO)
Rear PTO Type540
Dimensions & Tires
Wheelbase86 inches
218 cm
Weight6615 lbs
3000 kg
Front tire7.50-16
Rear tire15.5-38
Full dimensions and tires ...
2120 Serial Number Location

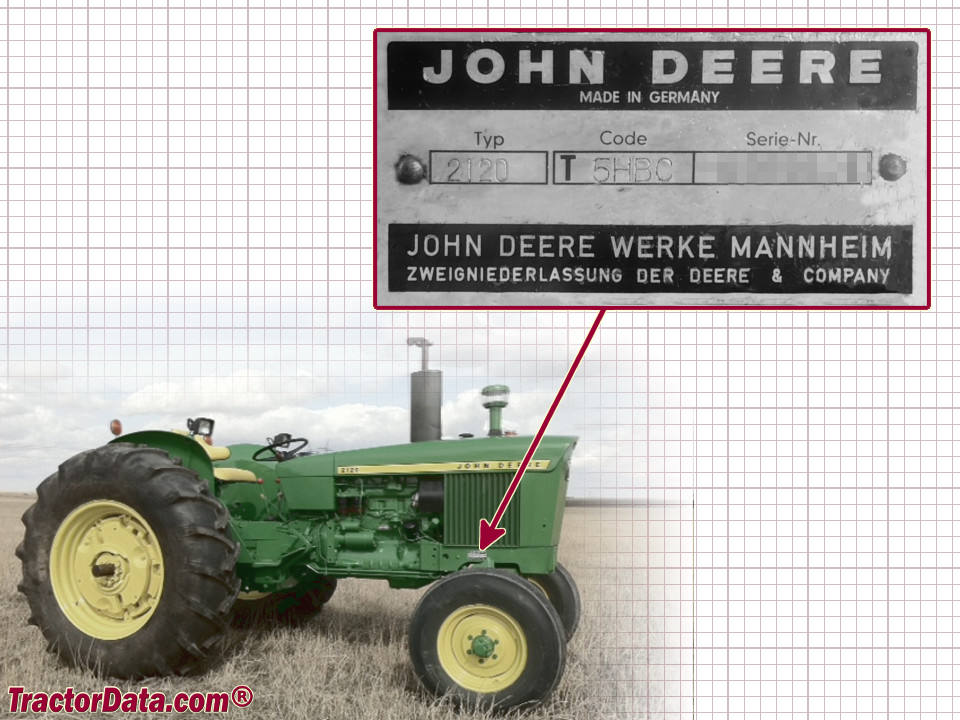

John Deere 2120 serial number location
Serial number plate on the right side of the 2120 frame, above the front axle.
References
2120 references literature
Operator's Manual 145 Loader (OMW21474)
New 2020 and 2120 Tractors published in 1969, by John Deere
