John Deere 8220T Tests


John Deere 8220T tractor photo
2002 - 2005
8020 Series
Agricultural Crawler tractor
Series map:
8120T
8220T
8320T
208.0hp
233.0hp
263.0hp
OCED Tractor Test 1774

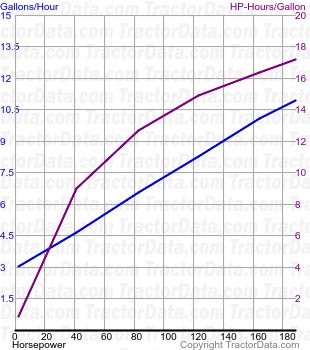

8220T fuel use from test 309
OCED Tractor Test 1774
Diesel 16-speed crawler
April 24 - May 17, 2000
Link: OCED Tractor Test 1774 file
PTO performance
Max power216.32 hp
161.3 kW
Fuel use11.7 gal/hour
44.3 l/hour
Power at rated engine speed188.13 hp
140.3 kW
Fuel use11.0 gal/hour
41.6 l/hour
Drawbar performance
Max power158.81 hp
118.4 kW
Fuel use10.9 gal/hour
41.3 l/hour
Gear 9 used for power test.
Max pull24,479 lbs
11103 kg
Gear 3 used for pull test.
