| | 2002 - 2005 |
| 8020 Series | | Row-Crop tractor |
|
Series map:
8420
8520
284.0hp
305.0hp
| Transmission |
| Transmission | John Deere PowerShift
|
| Type | full power shift
|
| Gears | 16 forward and 4 reverse
|
| Clutch | hydraulic wet disc
|
| Oil capacity | 158.4 qts
149.9 L
|
| Full power shift transmission with single shift lever with display on cab corner post. Tractor begins in 7 (forward) and 2 (reverse) on start up. Clutch pedal may be used to pre-select a gear by holding clutch and pressing lever until desired gear is reached. Automatic PowerShift (APS) allows automated shifting to match load. |

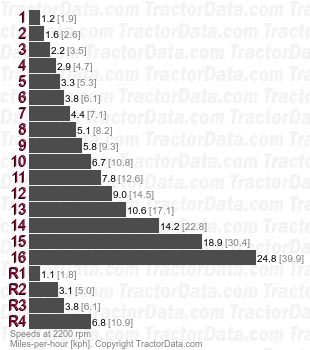

| Speeds |
| With 18.4R46 rear tires. |
|
