John Deere 8320 Tests


John Deere 8320 tractor photo
2002 - 2005
8020 Series
Row-Crop tractor
Series map:
8220
8320
8420
233.0hp
263.0hp
284.0hp
OCED Tractor Test 1798

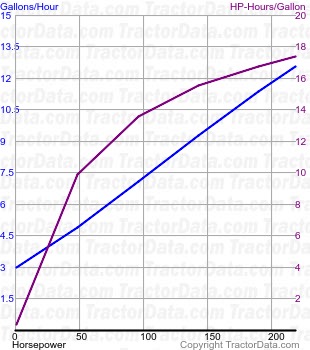

8320 fuel use from test 364
OCED Tractor Test 1798
Diesel 16-speed 4WD
May 10 - 31, 2002
Link: OCED Tractor Test 1798 file
PTO performance
Max power247.89 hp
184.9 kW
Fuel use13.0 gal/hour
49.2 l/hour
Power at rated engine speed218.52 hp
163.0 kW
Fuel use12.6 gal/hour
47.7 l/hour
Drawbar performance
Max power189.39 hp
141.2 kW
Fuel use12.6 gal/hour
47.7 l/hour
Gear 8 used for power test.
Max pull25,231 lbs
11444 kg
Gear 4 used for pull test.
