John Deere 8320 Engine


John Deere 8320 tractor photo
2002 - 2005
8020 Series
Row-Crop tractor
Series map:
8220
8320
8420
233.0hp
263.0hp
284.0hp
Engine Detail
John Deere
turbocharged diesel
6-cylinder
liquid-cooled inline
Displacement496 ci
8.1 L
Bore/Stroke4.56x5.06 inches
116 x 129 mm
Rated Power (net)250 hp
186.4 kW
Rated Power (gross)263 hp
196.1 kW
Maximum Power (net)275 hp
205.1 kW
Maximum Power (gross)268 hp
199.8 kW
Fuel systemelectronic high-pressure common rail (HPCR)
Air cleanerdry with secondary element
Compression16.5:1
Rated RPM2200
Idle RPM900-2300
Operating RPM1500-2200
Starter volts12
Coolant capacity35.9 qts
34.0 L
Engine Oil

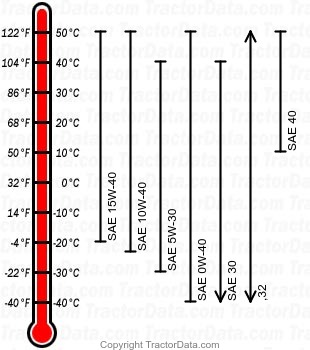

8320 diesel engine oil chart
Oil capacity26.4 qts
25.0 L
Oil change250 h
