John Deere 8220 Tests


John Deere 8220 tractor photo
2002 - 2005
8020 Series
Row-Crop tractor
Series map:
8120
8220
8320
208.0hp
233.0hp
263.0hp
OCED Tractor Test 1820

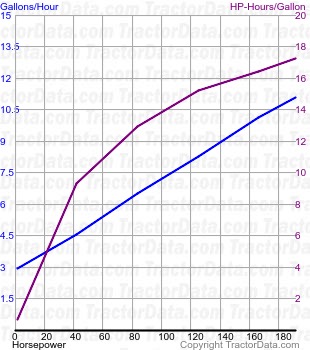

8220 fuel use from test 397
OCED Tractor Test 1820
Diesel 16-speed 4WD
March 31 - April 8, 2003
Link: OCED Tractor Test 1820 file
PTO performance
Max power222.35 hp
165.8 kW
Fuel use11.5 gal/hour
43.5 l/hour
Power at rated engine speed191.35 hp
142.7 kW
Fuel use11.1 gal/hour
42.0 l/hour
Drawbar performance
Max power164.50 hp
122.7 kW
Fuel use11.1 gal/hour
42.0 l/hour
Gear 8 used for power test.
Max pull23,872 lbs
10828 kg
Gear 3 used for pull test.
