John Deere 8120
|
|
| Production | |
| Manufacturer | John Deere |
| Row-Crop tractor | |
| Built in Waterloo, Iowa, USA | |
| John Deere 8120 Engine | |
| John Deere 8.1L 6-cyl diesel | |
 Engine details ... |
| John Deere 8120 Transmission | |
| 16-speed full power shift | |
 Transmission details ... |
| John Deere 8120 Power | |
| Engine (gross) | 208 hp 155.1 kW |
| Engine (net) | 200 hp 149.1 kW |
| Engine (max) | 230 hp 171.5 kW |
| PTO (claimed) | 170 hp 126.8 kW |
| Drawbar (tested) | 148.45 hp 110.7 kW |
| PTO (tested) | 199.71 hp 148.9 kW |
 Performance test details ... | |
| Mechanical | |
| Two- or four-wheel drive | |
| Steering | hydrostatic power |
| Hydraulic wet disc brakes | |
| Cab standard. | |
| Photos | |
 | |
 John Deere 8120 photos... | |
| Capacity | |
| Fuel | 135 gal 511.0 L |
| 160 gal (optional) 605.6 L | |
| Hydraulic system | 37 gal 140.0 L |
| 39.6 gal (ILS) 149.9 L | |
| Front hubs | 3.6 qts 3.4 L |
| 4.2 qts (ILS) 4.0 L | |
| Front diff. | 14.2 qts 13.4 L |
| Hydraulics | |
| Type | closed center pressure-flow compensated (PFC) |
| Capacity | 37 gal 140.0 L |
| 39.6 gal (ILS) 149.9 L | |
| Pressure | 2900 psi 200.0 bar |
| Valves | 5 |
| SCV flow | 30 gpm 113.6 lpm |
| Total flow | 33.5 gpm*With standard 45cc pump 126.8 lpm |
| 42.5 gpm*Optional 57cc pump 160.9 lpm | |
| Tractor hitch | |
| Rear Type | III,IIIN |
| Rear lift | 12,300 lbs 5579 kg |
| 15,180 lbsOptOptional 6885 kg | |
| Front Hitch | IIIN OptOptional |
| Front lift | 11000 lbs 4989 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Clutch | hydraulic wet discs |
| Rear PTO Type | 1000 (1.75) |
| 540/1000 (1.375 optional) | |
| Engine RPM | 540@1975 |
| 1000@2200 | |
| Dimensions & Tires | |
| 2WD Wheelbase | 123.6 inches 313 cm |
| 4WD Wheelbase | 116.9 inches 296 cm |
| ILS Wheelbase | 115.7 inches 293 cm |
| 118.9 inches (long frame) 302 cm | |
| Weight | 19100 to 22450 pounds |
| Front tire | 11.00-24 |
| Rear tire | 480/80R46 |
 Full dimensions and tires ... | |

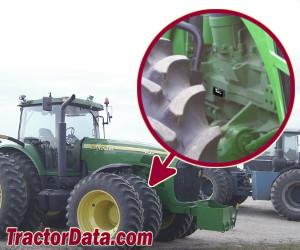

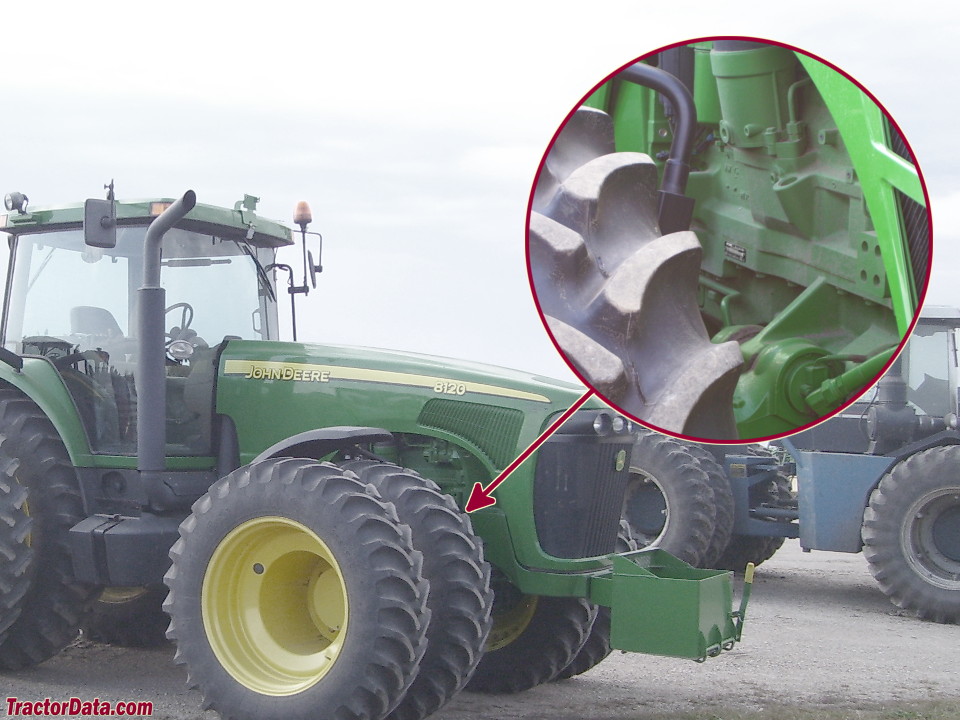

| 8120 Serial Number Location | |
 | |
| Rear of tractor. |
| 8120 Serial Numbers | |
| 2002 | 1001 |
| 2003 | 10001 |
| 2004 | 20001 |
| 2005 | 30001 |
FAQ: How to read a serial number table. | |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 150 |
| Batteries | 2 |
| Battery CCA | 925 |
| Battery volts | 12 |
