John Deere 8120 Transmission


John Deere 8120 tractor photo
2002 - 2005
8020 Series
Row-Crop tractor
Series map:
8120
8220
208.0hp
233.0hp
Transmission
TransmissionJohn Deere PowerShift
Typefull power shift
Gears16 forward and 4 reverse
Clutchhydraulic wet disc
Oil capacity148 qts
140.1 L
 158.4 qts (ILS)
149.9 L
Full power shift transmission with single shift lever with display on cab corner post. Tractor begins in 7 (forward) and 2 (reverse) on start up. Clutch pedal may be used to pre-select a gear by holding clutch and pressing lever until desired gear is reached. Automatic PowerShift (APS) allows automated shifting to match load.
Speeds
With 18.4R46 rear tires.

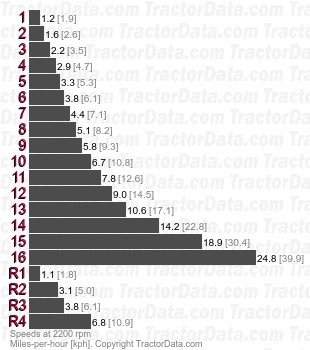

8120 PowerShift full power shift speeds
