John Deere 7720 Engine


John Deere 7720 tractor photo
2004 - 2007
7020 Series
Row-Crop tractor
Series map:
7720
7820
172.9hp
189.1hp
Engine Detail
John Deere
turbocharged diesel
6-cylinder
liquid-cooled inline
Displacement414 ci
6.8 L
Bore/Stroke4.19x5.00 inches
106 x 127 mm
Rated Power (net)167.6 hp
125.0 kW
Rated Power (gross)172.9 hp
128.9 kW
Maximum Power (net)179.7 hp
134.0 kW
Maximum Power (gross)185.1 hp
138.0 kW
Compression17:1
Rated RPM2100
Idle RPM875-2200
Firing order1-5-3-6-2-4
Starter volts12
Oil capacity27.5 qts
26.0 L
Coolant capacity33.8 qts
32.0 L
John Deere 7720 Engine

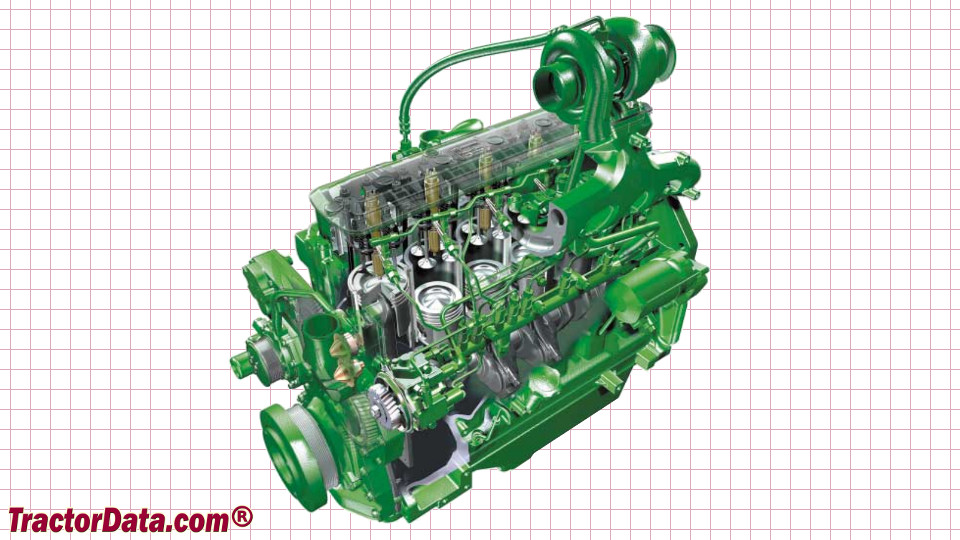

John Deere 7720 engine image
