John Deere 7520 Tests


John Deere 7520 tractor photo
2003 - 2007
7020 Series
Row-Crop tractor
Series map:
7420
7520
135.0hp
150.0hp
OCED Tractor Test 1818

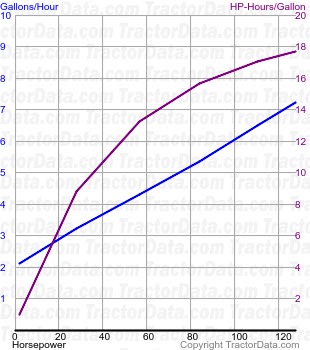

7520 fuel use from test 395
OCED Tractor Test 1818
Diesel IVT 4WD
March 25 - April 17, 2003
Link: OCED Tractor Test 1818 file
PTO performance
Max power143.97 hp
107.4 kW
Fuel use7.6 gal/hour
28.8 l/hour
Power at rated engine speed125.75 hp
93.8 kW
Fuel use6.7 gal/hour
25.4 l/hour
Drawbar performance
Max power110.88 hp
82.7 kW
Fuel use7.4 gal/hour
28.0 l/hour
Max pull13,634 lbs
6184 kg
Pull at 4-kph
