John Deere 6715


John Deere 6715 tractor photo
2003 - 2007
6015 Series
Utility tractor
Series map:
6615
6715
116.7hp
129.4hp
Production
ManufacturerJohn Deere
Utility tractor
Built in Mannheim, Baden-Württemberg, Germany
Variants
6715utility
6715HChigh-clearance
John Deere 6715 Engine
John Deere 6.8L 6-cyl diesel
Fuel tank54.7 gal
207.0 L
Engine details ...
John Deere 6715 Transmissions
12-speed fully synchronized
16-speed power shuttle
16-speed four-speed power shift
Transmission details ...
John Deere 6715 Power
Engine (gross)129.4 hp
96.5 kW
Engine (net)125 hp
93.2 kW
PTO (claimed)105 hp
78.3 kW
Drawbar (tested)94.3 hp
70.3 kW
PTO (tested)119.1 hp
88.8 kW
Performance test details ...
Mechanical
Two- or four-wheel drive
Differential lockelectro-hydraulic rear
Steeringhydrostatic power
Hydraulic wet disc brakes
Two-post foldable ROPS. ComfortVantage Cab optional with air-conditioning.
Hydraulics
Typeconstant-flow load-sensing
Valves1 to 4
Pump flow17.5 gpm
66.2 lpm
Tractor hitch
Rear TypeII
Controlelectro-hydraulic lower-link draft sensing
Rear lift (at 24"/610mm)5915 lbs*During testing, actual lift was only 5430 pounds.
2683 kg
Power Take-off (PTO)
Rear PTOindependent
Clutchelectro-hydraulic wet disc
Rear PTO Type540/1000
Dimensions & Tires
2WD Wheelbase106.3 inches
270 cm
4WD Wheelbase104.3 inches
264 cm
Weight8776 to 10252 pounds
Front tire10.00-16
2WD Rear tire18.4-38
Full dimensions and tires ...

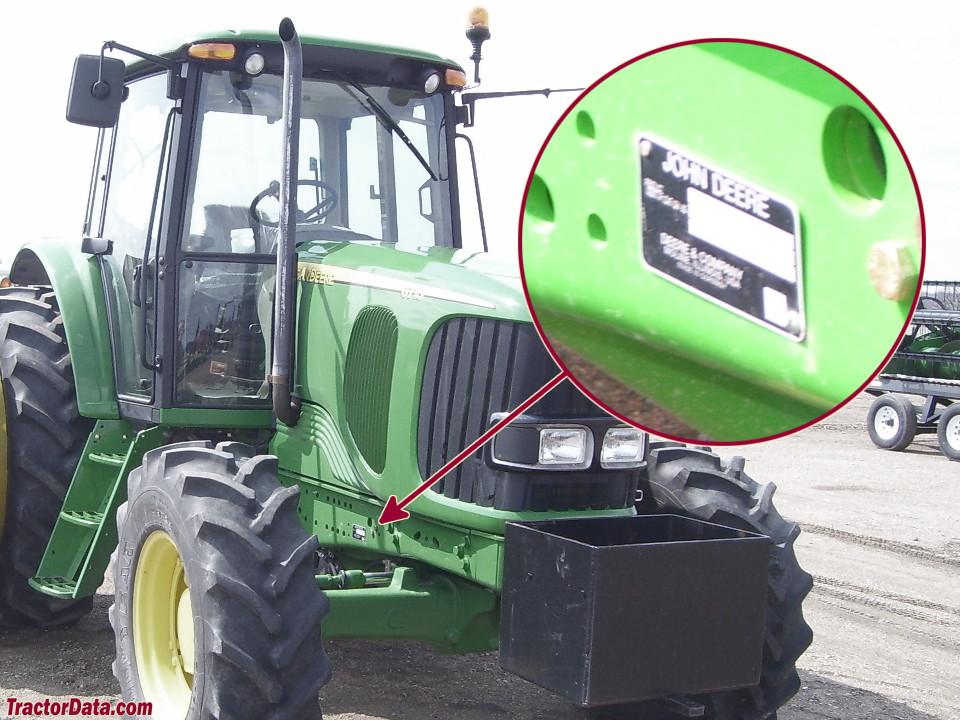

6715 Serial Number Location
John Deere 6715 serial number location
Serial number plate on the right side of the tractor frame, above the front axle.
Electrical
Groundnegative
Charging systemalternator
Charging amps90
Battery CCA1230
Battery volts12
Battery AH154
References
6715 references literature
6015 Series published in 2002, by John Deere
6015 Series published in 2004, by John Deere
High-Crop and High-Clearance Tractors published in 2004, by John Deere
