Tractors > John Deere > 6615

John Deere 6615

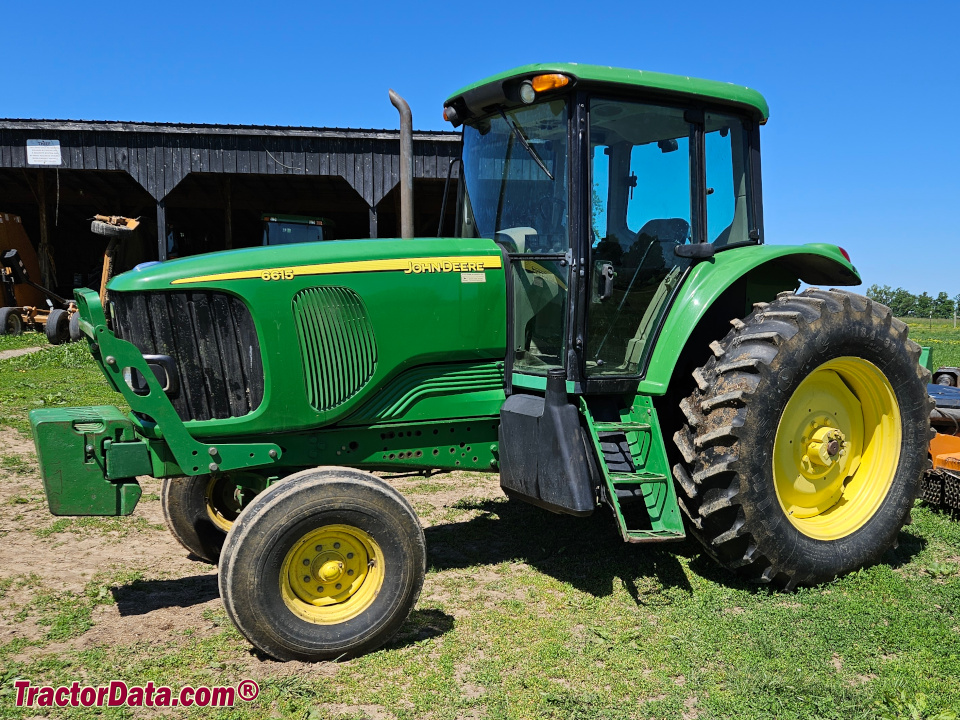

John Deere 6615 tractor photo
2003 - 2007
6015 Series
Utility tractor
Series map:
6415
6615
6715
104.6hp
116.7hp
129.4hp
Production
ManufacturerJohn Deere
Utility tractor
Built in Mannheim, Baden-Württemberg, Germany
Variants
6615utility
6615HChigh-clearance
John Deere 6615 Engine
John Deere 6.8L 6-cyl diesel
Fuel tank54.7 gal
207.0 L
Engine details ...
John Deere 6615 Transmissions
12-speed fully synchronized
16-speed power shuttle
16-speed four-speed power shift
Transmission details ...
John Deere 6615 Power
Engine (gross)116.7 hp
87.0 kW
Engine (net)115 hp
85.8 kW
PTO (claimed)95 hp
70.8 kW
Drawbar (tested)83.4 hp
62.2 kW
PTO (tested)105.3 hp
78.5 kW
Performance test details ...
Mechanical
Two- or four-wheel drive
Differential lockelectro-hydraulic rear
Steeringhydrostatic power
Hydraulic wet disc brakes
Two-post foldable ROPS. ComfortVantage Cab optional with air-conditioning.
Photos
No photos of the John Deere 6615 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Typeconstant-flow load-sensing
Valves1 to 4
Pump flow17.5 gpm*During testing, the 6615 was unable to produce 17.5 GPM hydraulic flow. Actual flow was 17.2 GPM.
66.2 lpm
Tractor hitch
Rear TypeII
Controlelectro-hydraulic lower-link draft sensing
Rear lift (at 24"/610mm)5915 lbs
2683 kg
Power Take-off (PTO)
Rear PTOindependent
Clutchelectro-hydraulic wet disc
Rear PTO Type540/1000
Dimensions & Tires
2WD Wheelbase106.3 inches
270 cm
4WD Wheelbase104.3 inches
264 cm
Weight8776 to 10252 pounds
Front tire10.00-16
2WD Rear tire18.4-38
Full dimensions and tires ...
John Deere 6615 attachments
front-end loader
Attachment details ...
Electrical
Groundnegative
Charging systemalternator
Charging amps90
Battery CCA1230
Battery volts12
Battery AH154
References
6615 references literature
6015 Series published in 2002, by John Deere
6015 Series published in 2004, by John Deere
High-Crop and High-Clearance Tractors published in 2004, by John Deere
