John Deere 6615 Transmission


John Deere 6615 tractor photo
2003 - 2007
6015 Series
Utility tractor
Series map:
6415
6615
6715
104.6hp
116.7hp
129.4hp
Transmission options
12-speed fully synchronized
16-speed power shuttle
16-speed four-speed power shift
Transmission
TransmissionSyncroPlus
Typefully synchronized
Gears12 forward and 4 reverse
Clutchwet disc

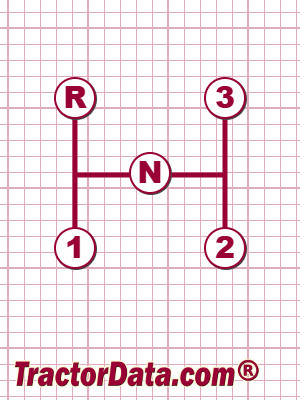

Three synchronized gears (1-3) plus reverse (R) in four synchronized ranges (A-D).
Speeds
With 18.4-38 rear tires.
6615 SyncroPlus fully synchronized speeds
Transmission
TransmissionSyncroPlus Reverser
Typepower shuttle
Gears16 forward and reverse
Clutchwet disc
Reverser option adds left-hand power shuttle lever to SyncroPlus transmission. Four synchronized gears (1-4) in four synchronized ranges (A-D) with shuttle lever.
Speeds
With 18.4-38 rear tires. Reverse speeds are 20% faster than forward speeds.

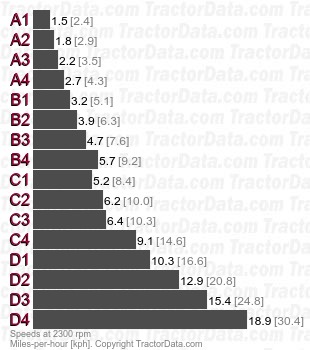

6615 SyncroPlus Reverser power shuttle speeds
Transmission
TransmissionPowrQuad
Typefour-speed power shift
Gears16 forward and reverse
Clutchwet disc
Four power shift gears (1-4) in four synchronized ranges (A-D) with power shuttle lever.
Speeds
With 18.4-38 rear tires. Reverse speeds are 20% faster than forward speeds.
6615 PowrQuad four-speed power shift speeds
