Tractors > John Deere > 6215

John Deere 6215



John Deere 6215 tractor photo
2003 - 2007
6015 Series
Utility tractor
Series map:
6215
6415
92.5hp
104.6hp
Production
ManufacturerJohn Deere
Utility tractor
Built in Mannheim, Baden-Württemberg, Germany
John Deere 6215 Engine
John Deere 4.5L 4-cyl diesel
Fuel tank43.6 gal
165.0 L
Engine details ...
John Deere 6215 Transmissions
12-speed fully synchronized
16-speed power shuttle
16-speed four-speed power shift
Transmission details ...
John Deere 6215 Power
Engine (gross)92.5 hp
69.0 kW
Engine (net)90 hp
67.1 kW
PTO (claimed)72 hp
53.7 kW
Drawbar (tested)62.2 hp
46.4 kW
PTO (tested)80.3 hp
59.9 kW
Performance test details ...
Mechanical
Two- or four-wheel drive
Differential lockelectro-hydraulic rear
Steeringhydrostatic power
Hydraulic wet disc brakes
Two-post foldable ROPS. ComfortVantage Cab optional with air-conditioning.
Photos
No photos of the John Deere 6215 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Typeconstant-flow load-sensing
Valves1 to 4
Pump flow17.5 gpm
66.2 lpm
Tractor hitch
Rear TypeII
Controlelectro-hydraulic lower-link draft sensing
Rear lift (at 24"/610mm)5028 lbs*During testing, the 6215 was only able to lift 4,200 pounds.
2280 kg
Power Take-off (PTO)
Rear PTOindependent
Clutchelectro-hydraulic wet disc
Rear PTO Type540
Dimensions & Tires
Wheelbase94.5 inches
240 cm
Weight7695 to 8987 pounds
Front tire10.00-16
2WD Rear tire18.4-30
Full dimensions and tires ...
John Deere 6215 attachments
front-end loader
Attachment details ...
Electrical
Groundnegative
Charging systemalternator
Charging amps90
Battery CCA830
Battery volts12
Battery AH110
References

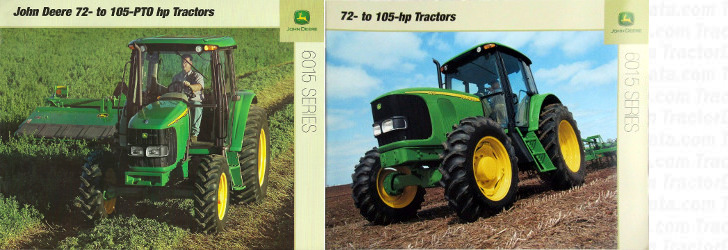

6215 references literature
6015 Series published in 2002, by John Deere
6015 Series published in 2004, by John Deere
